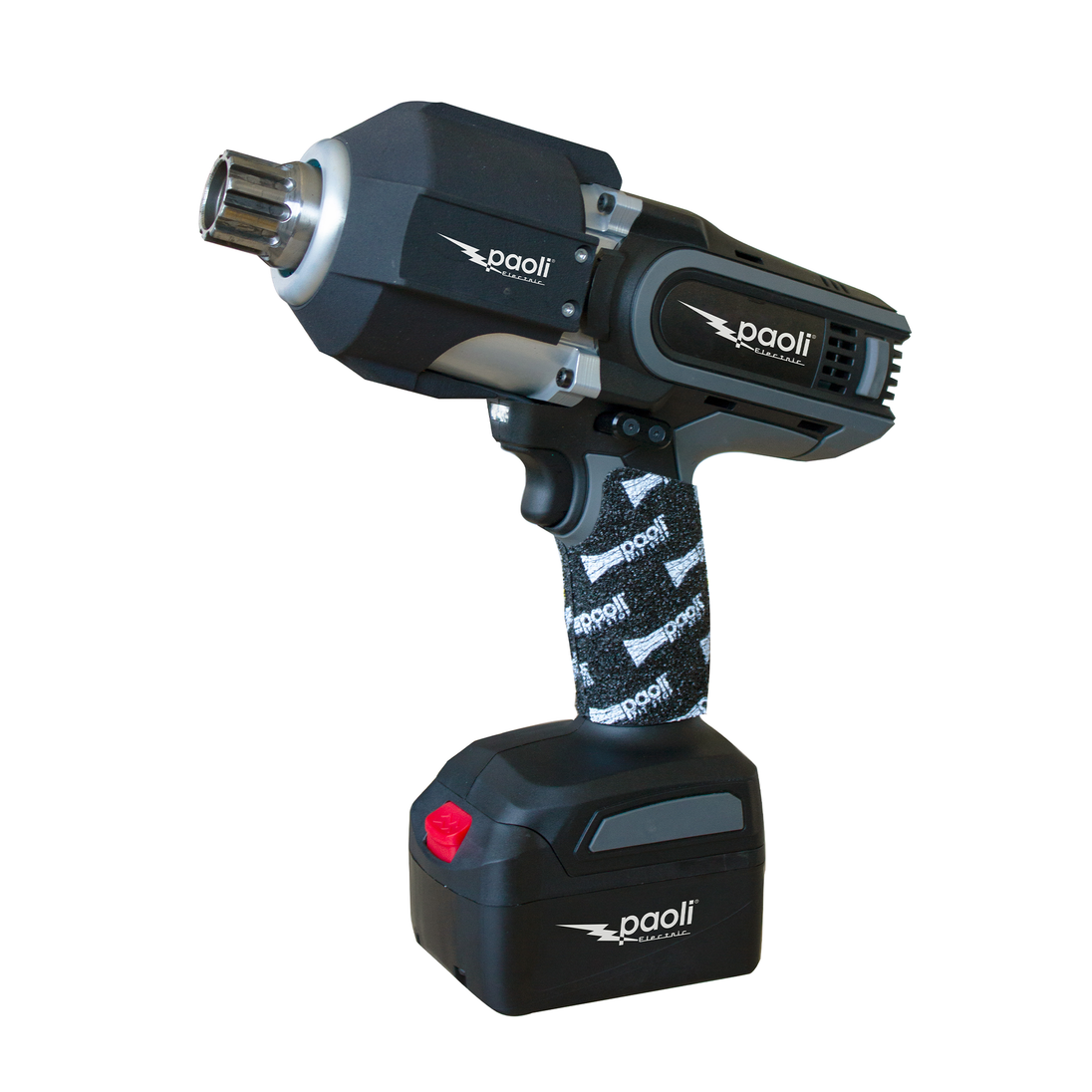

TYPHOON PLUS WITH TORQUE INDICATOR

The Typhoon Plus with Torque Indicator is the first electric wheel gun ever officially used in a motorsport world championship and is now available for broader professional use. Built for high-performance environments such as Formula 2 and Formula 3, it combines cordless flexibility with exceptional power, delivering up to 1600 Nm of torque. What sets this model apart is its intelligent torque monitoring system, which uses LED indicators to signal tightening accuracy in real time. This helps teams detect installation errors immediately and ensures more consistent torque application across pit stops. The tool can be individually calibrated for each specific vehicle, hub, and socket, allowing for optimized performance tailored to the user’s setup. Additional smart features like the cross-thread detection system and data logging capabilities further enhance reliability and precision. Designed with an ergonomic grip, high-efficiency lithium-ion battery, and integrated work light, the Typhoon Plus offers top-tier control, safety, and performance. It’s the ultimate solution for teams aiming to reduce tyre change times and eliminate errors under pressure.

Application: Professional cordless electric wheel gun for motorsport – Formula 2 / Formula 3
Version: Cordless
Drive shaft options: Spline or Square Drive
Weight (with battery): 4.3 kg (9.47 lbs)
Length: 253 mm (9.96”)
Width: 98.5 mm (3.87”)
Height: 287 mm (11.29”)
Voltage: 20.0V DC
Amperage: 6.0 Ah
Free speed: 1650 rpm
Max torque: 1600 Nm (1180 ft-lbs)
(Tested on hub with M54x3 thread, friction coefficient <0.10, nut/rim contact surface with 45° cone shape)

LED torque indicator: Real-time visual feedback for tightening precision
Calibration system: Custom calibration for each vehicle, hub, and socket
Optimized tyre changes: Supports faster and more consistent pit stop performance
Cross-thread detection: Software upgrade available for thread damage prevention
Battery type: Lithium-ion 20.0V DC
Fast charging: Quick battery recharge for continuous operation
Working light: Built-in LED to illuminate the working point during use
Data management: Optional login device to download pit stop event data
Battery protection: Impact-resistant cover to prevent battery detachment
Ergonomic handle: Designed for comfortable and secure grip during high-speed operations
