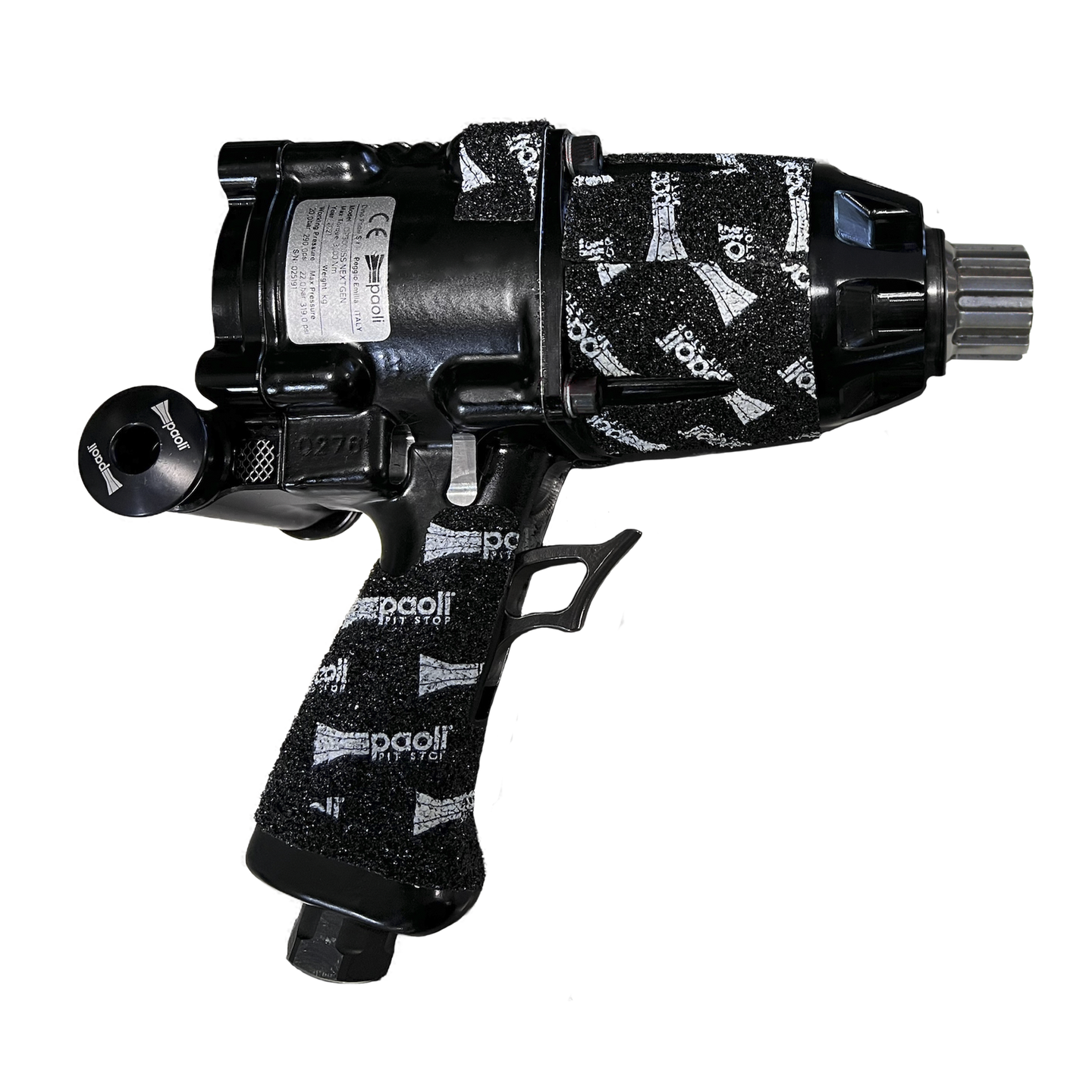

SUPERSPORT NEXTGEN

The SUPERTORQUE NEXTGEN is a high-performance pneumatic wheel gun designed specifically for endurance racing. It delivers extremely high torque with a free speed of up to 10,000 rpm for LH/RH versions and 9,500 rpm for the UH version. With a maximum torque of 1,900 Nm, it is optimized for fast and efficient wheel changes.

The gun is lightweight at 4.2 kg and compact in length (193 mm), making it easy to handle during intense pit stop operations. The UH version is unhanded and loosens both clockwise and anticlockwise nuts with the same efficiency. Built for durability, the gun features 6 carbon vanes and an aeronautical-grade aluminum front cover to withstand the harshest racing conditions. It operates at a maximum pressure of 20 bar and uses a 3/8” BSP air inlet. The selector plate allows rapid switching between operating modes, and the device is fully compatible with standard 1” square drive systems. Ideal for professional motorsport teams seeking reliability and speed under pressure.

LH / RH Versions: 10,000 rpm

UH Version: 9,500 rpm

LH / RH: 1,900 Nm (1,400 ft-lbs)

UH: 1,800 Nm (1,327 ft-lbs)

Weight: 4.20 kg (9.2 lbs)

Length: 193 mm (7.59”)

Square Drive: 1”

Optimized for Endurance Racing

Special UH (Unhanded) version loosens both clockwise and anticlockwise nuts at the same speed.

Fast LH and RH versions for direction-specific efficiency.

Equipped with 6 new carbon vanes

Aeronautical aluminum front cover for durability under extreme conditions

Max Operating Pressure: 20 bar / 290 psi

Air Supply Requirements

Air Inlet: 3/8” BSP

Supply Hose Inner Diameter: 13 mm (0.51”)

Recommended couplings: minimum bore 7.6 mm (19/64”)

Use with male 3/8” BSP fittings

Gun Selector Plate: 2-port for rapid operation changes
