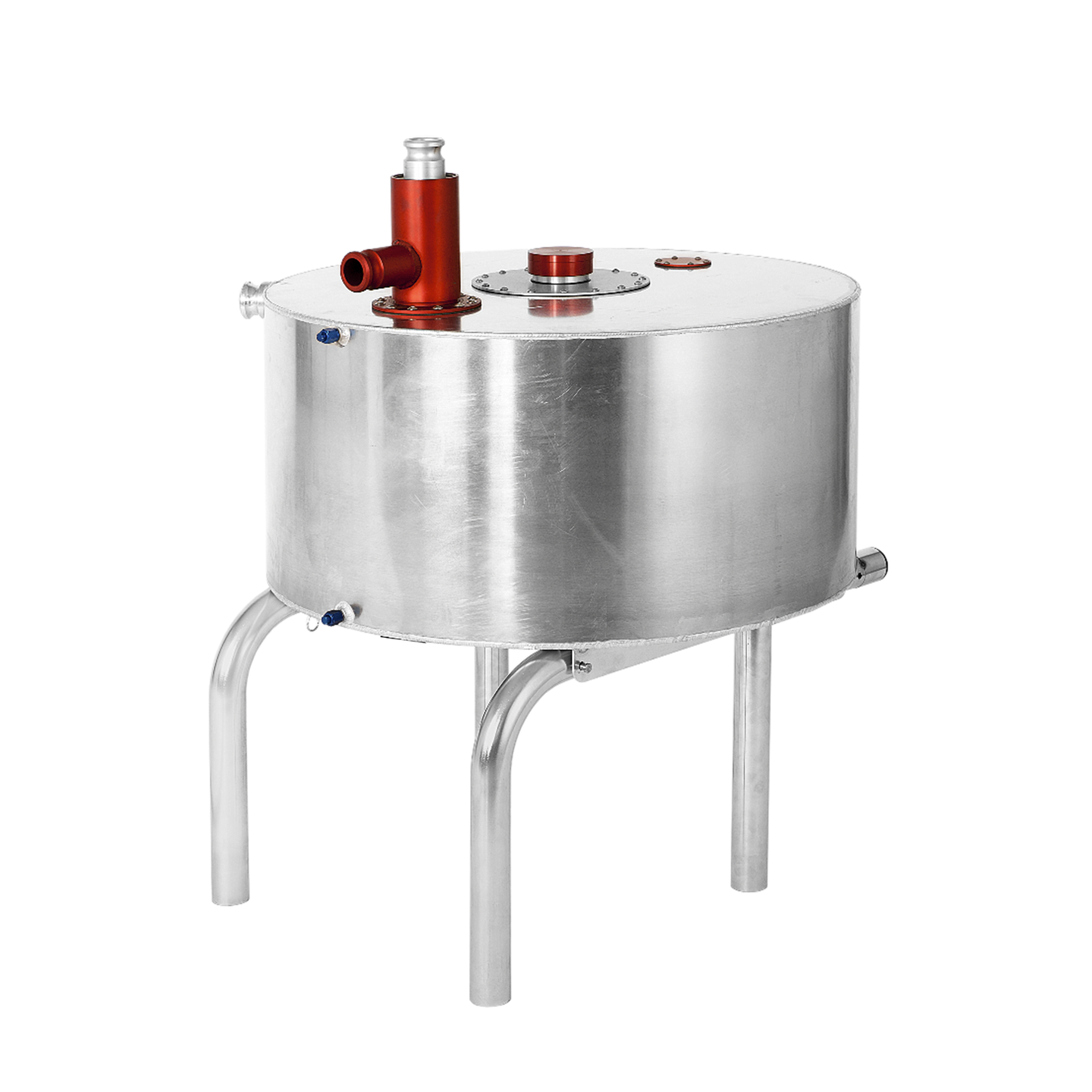

RF200-FIA REFUELLING TANK

The RF200 tank is designed for quick refuelling in endurance races, manufactured according to FIA specifications (APPENDIX “J”, drawing 252-7 and 252-7-2017). Built from high-quality aluminum with a bottom thickness of 10 mm made of milled hardened aluminum for maximum durability and safety.

Each kit includes a discriminator with flange connection, Kamlok return hose, filler cap flange, ventilation pipe with Kamlok coupling, and 2 × DASH06 fittings for the installation of a mechanical measurement system.

Always consult with us when assembling the RF200. The pictures are illustrative.

0150121001 / RF200-FIA
Restrictor FIA 33 mm
Inner nut ring
FIA discriminator with male Kamlok
FIA vent pipe

0150121024 / RF200-FIA-WEC
Regulation FIA Drawing 252-7-2017
Regulation FIA Drawing 7.A
FIA discriminator with male Kamlok
Vent male Kamlok
FIA vent pipe
(FIA-WEC restrictor and inner nut ring must be specified as per regulation – not included in the price)

Material: Aluminum, bottom plate 10 mm hardened milled aluminum
Application: Endurance racing fuel system
Compliance: FIA regulations (APPENDIX “J”)
Features: Safe refuelling, durable construction, precision components

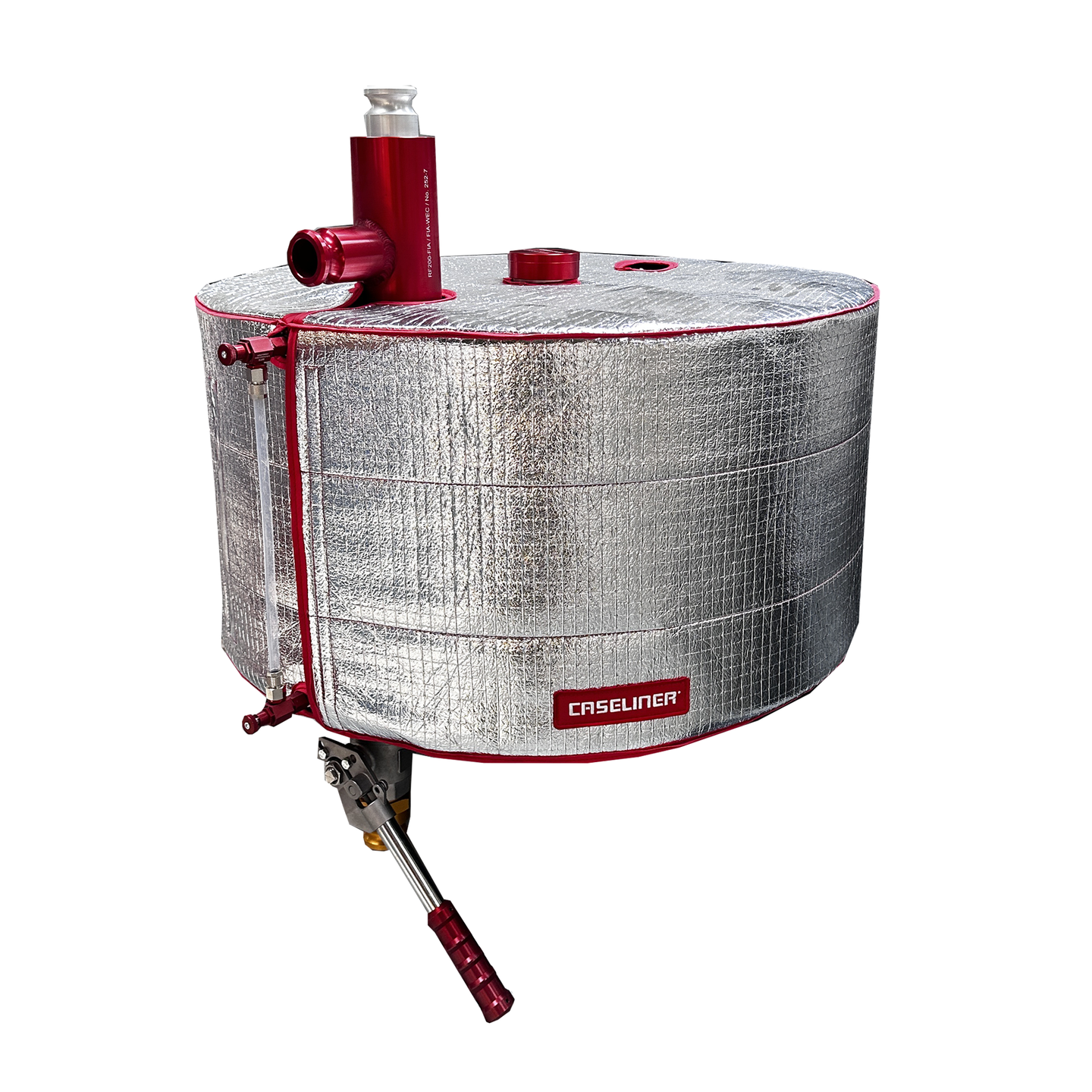

• 0150221003 / HEAT REFLECTIVE COVER
• 0150211001 / MEASUREMENT FUEL SYSTEM
• 0150221028 / FIA DEADMAN SET
• 0150231002 / KAMLOK RFL
• 0150224999 / NUT RING TYPE A

• 0150224998 / NUT RING TYPE B
• 0150221116 / RF200 HOLDERS UNI

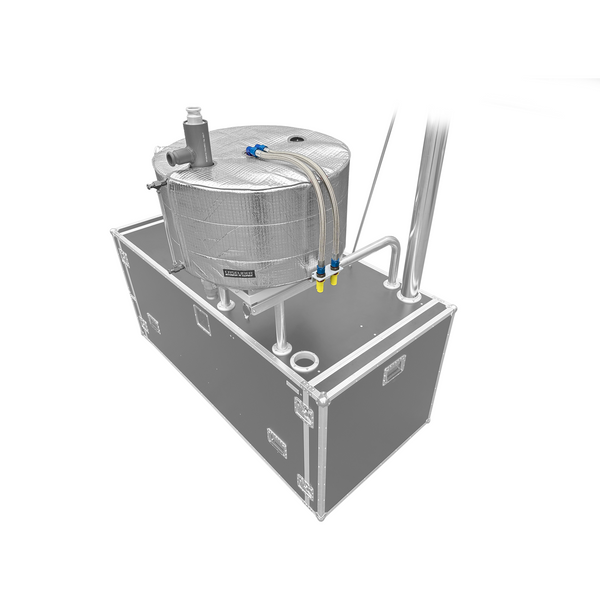

• 0150121034 / FILLING HOSE SPT12


Photos are illustrative, please read all variants and accessories correctly. Or contact us.
