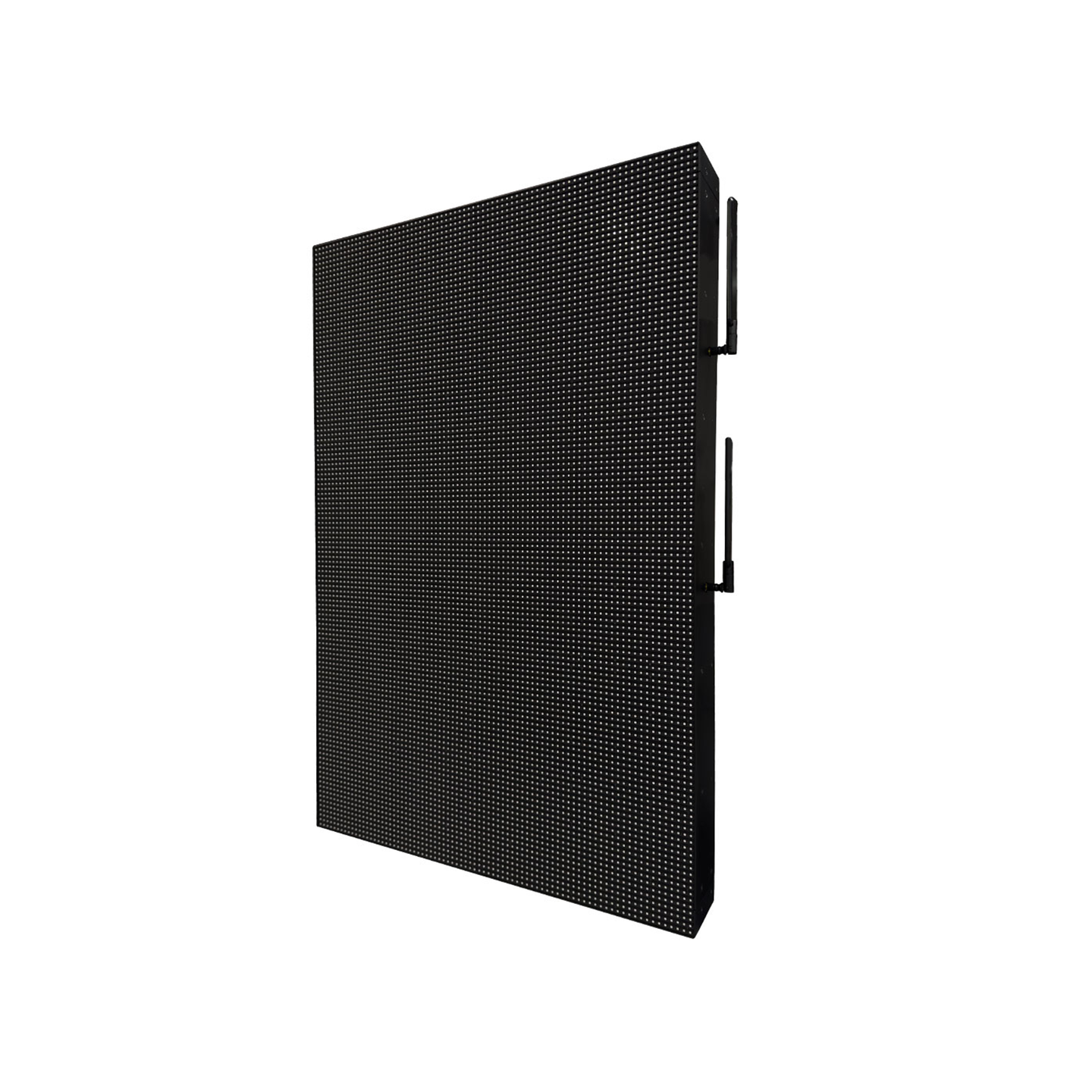

PIT BOARD CL-15

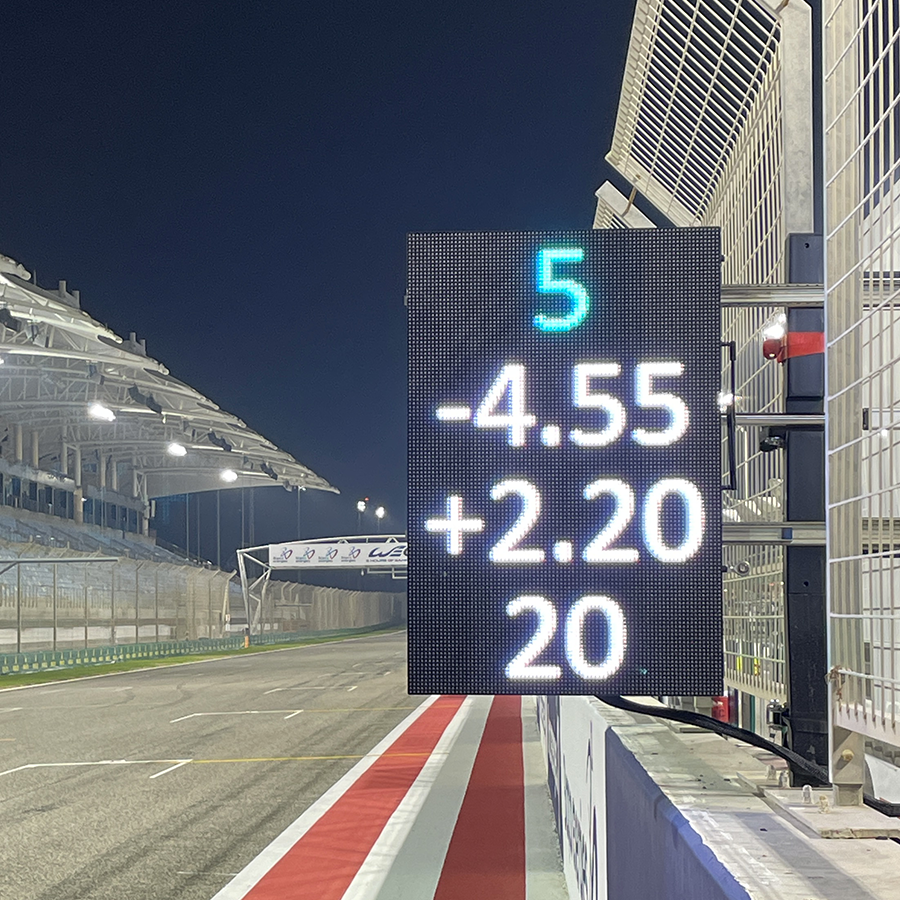

PIT BOARD CL-15. New full-color and graphic technology. Standard LED fonts can be projected in 1,2,3 or 4 rows. Possibility of inserting graphic files depicting logos, signals, instructions, symbols, etc. CL-15 includes standard software for Windows environment.

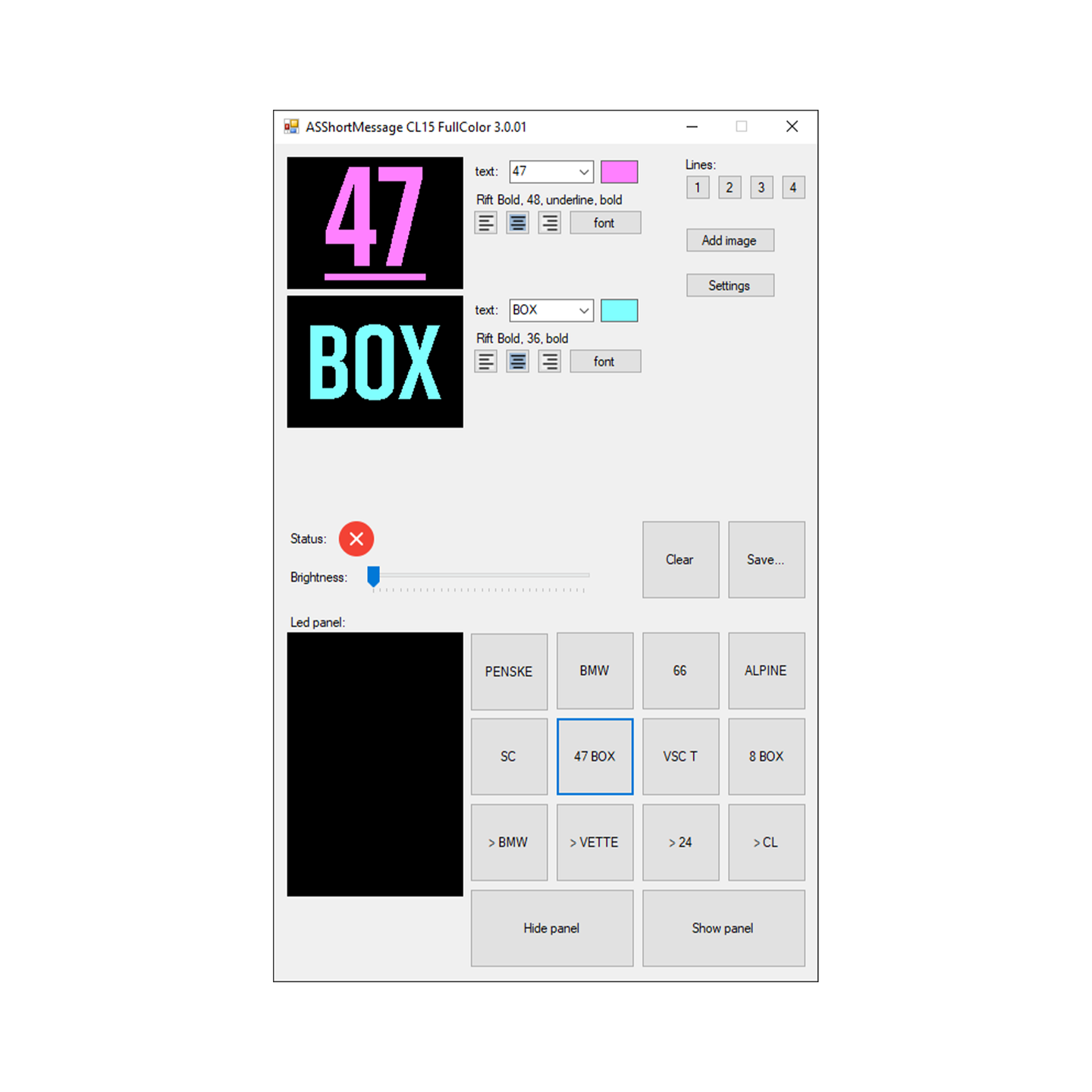

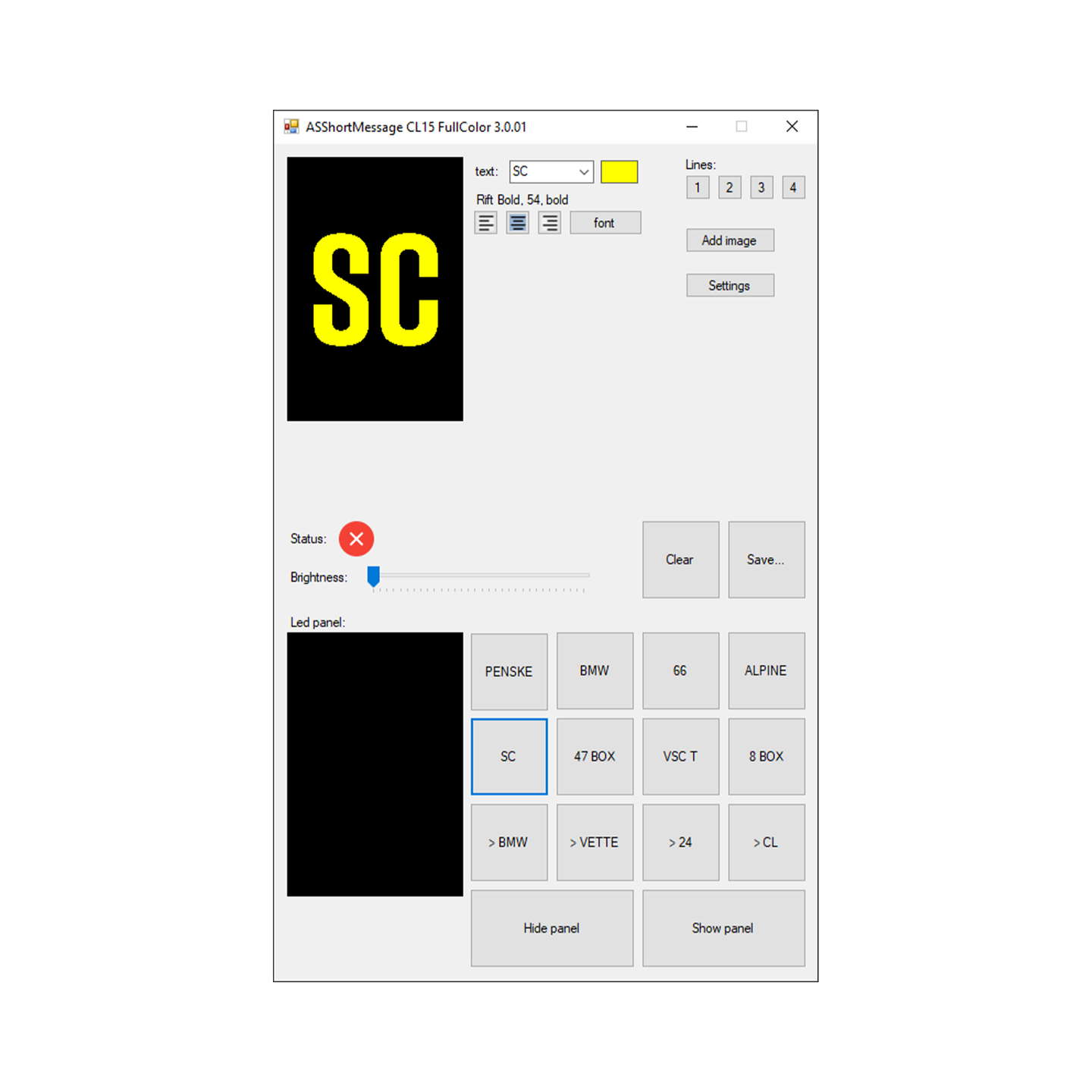

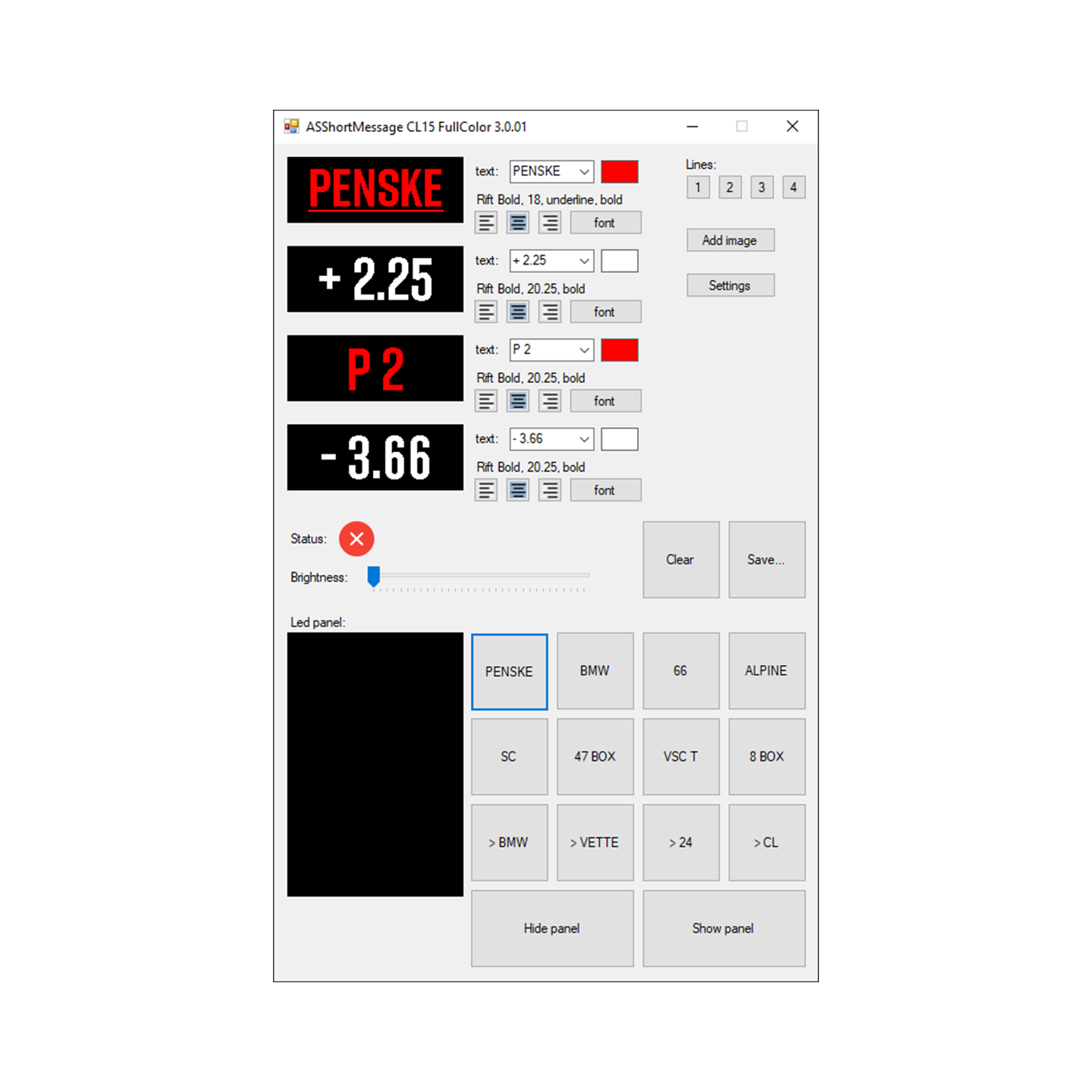

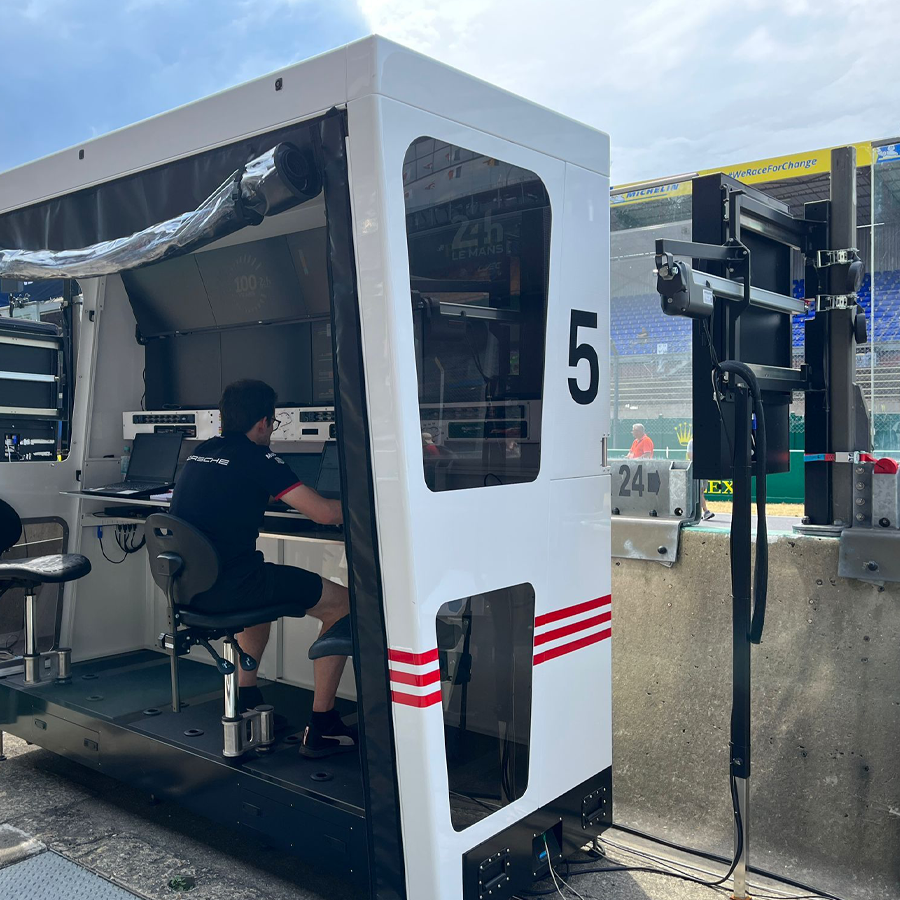

Highly weatherproof IP65, sophisticated waterproof flight case for transport* and also as a support bracket for the pitwall. Light weight and compact dimensions. The post mount is universal for right or left-handed circuits. Intuitive SW for easy operation of the pit board. Memory pre-programmed buttons, font, size and color selections.

World number one in Pit Board!

• Dimensions – 645 x 965 x 90 mm
• Pixel pitch – 8 mm
• Resolution – 80 x 120 px / 9.600px
• Number of colours – 46 ( + unlimited number )
• Viewing angle – 140°/140°
• Weight – 19 kg / 0.621 m2
• Power supply – 110V/230V
• Coverage – IP65
• Remote APP – ASShort-CL15 / OS Windows10…
• Ethernet RJ45
• WIFI 2,4GHz or 5GHz / hotspot

Can be connected with TrackSide software / RaceCTRL and HH Development / HH Timing apps. Our original electro ejection is controlled automatically depending on the position of the car on the track by GPS. You can add any information in real time.

TrackSide Software / RaceCTRL

HH Development / HH Timing

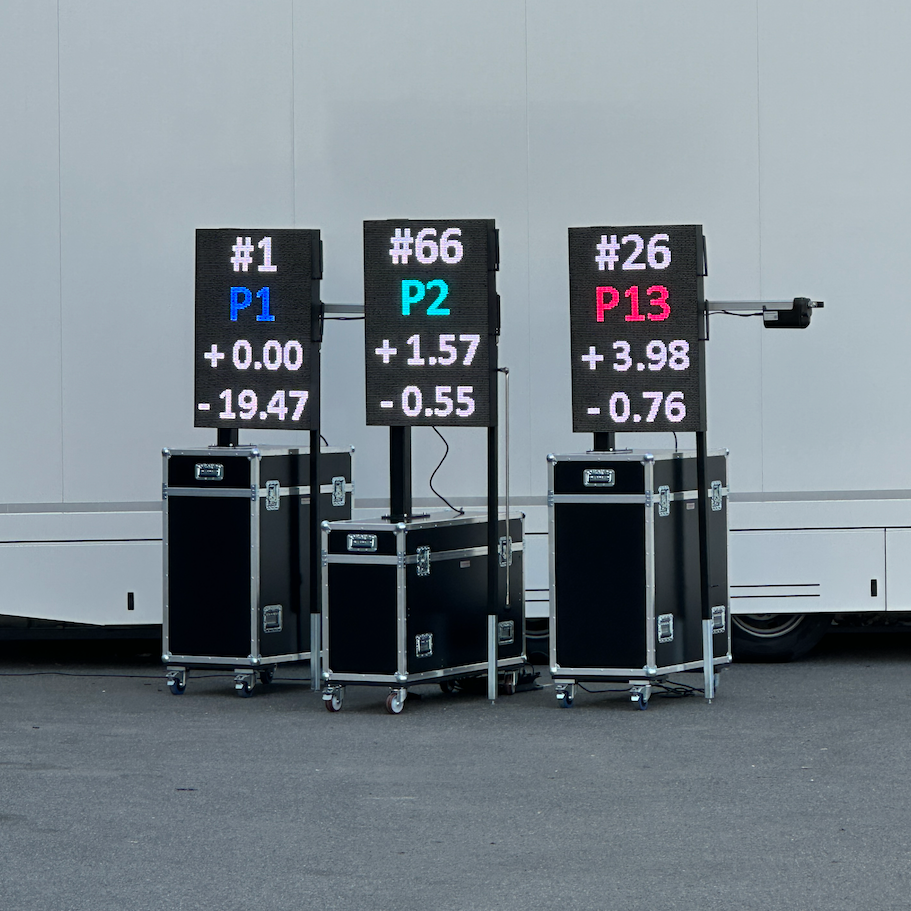

0080121150 / LED BOARD CL-15
CL-15 (only pit board)

0080121151 / LED BOARD CL-15 KIT MW
CL-15 (pit board)

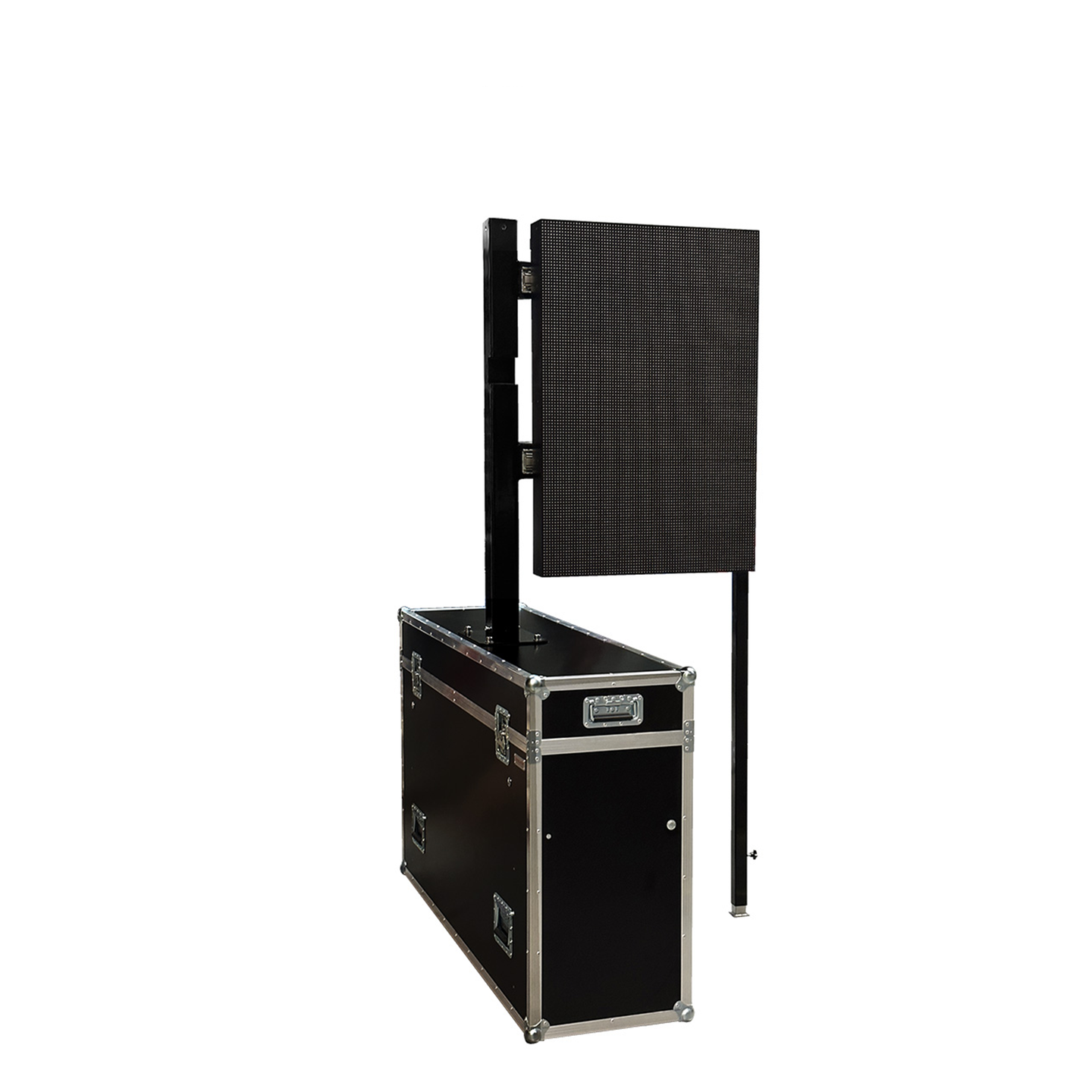

CL-M (manual sliding frame)
PBBW (flight case on pitwall)

0080121152 / LED BOARD CL-15 KIT MEW
CL-15 (pit board)
CL-M (manual sliding frame)
CL-E (electronic engine to manual frame)
PBBW (flight case on pitwall)

0080121153 / LED BOARD CL-15 KIT MAW
CL-15 (pit board)
CL-M (manual sliding frame)
PBBAW (flight case on pitwall – aircraft dimensions)

0080121154 / LED BOARD CL-15 KIT MEAW
CL-15 (pit board)
CL-M (manual sliding frame)
CL-E (electronic engine to manual frame)
PBBAW (flight case on pitwall – aircraft dimensions)

• Robust LED board construction for high visibility

• Modular system with manual and electronic sliding frame options

• Flight cases optimized for pitwall installation and transport

• Versions available in standard and aircraft transport dimensions

For this product, an individual shipping cost will be proposed due to oversized dimensions. After completing your order, select "Request for Quote" as the payment method. You will make the payment upon receiving an invoice with the proposed shipping cost.
