Product specifications

DESCRIPTIONS

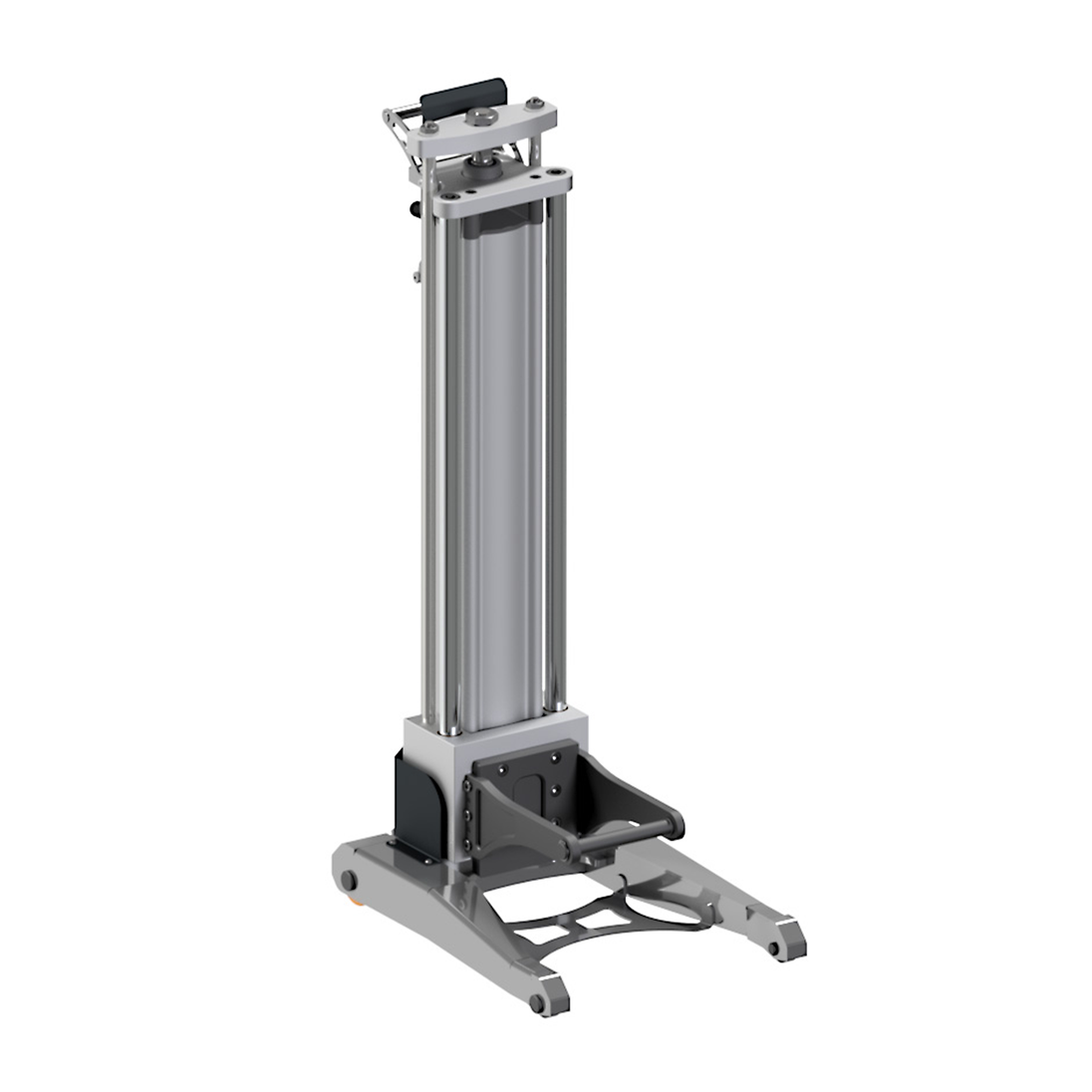

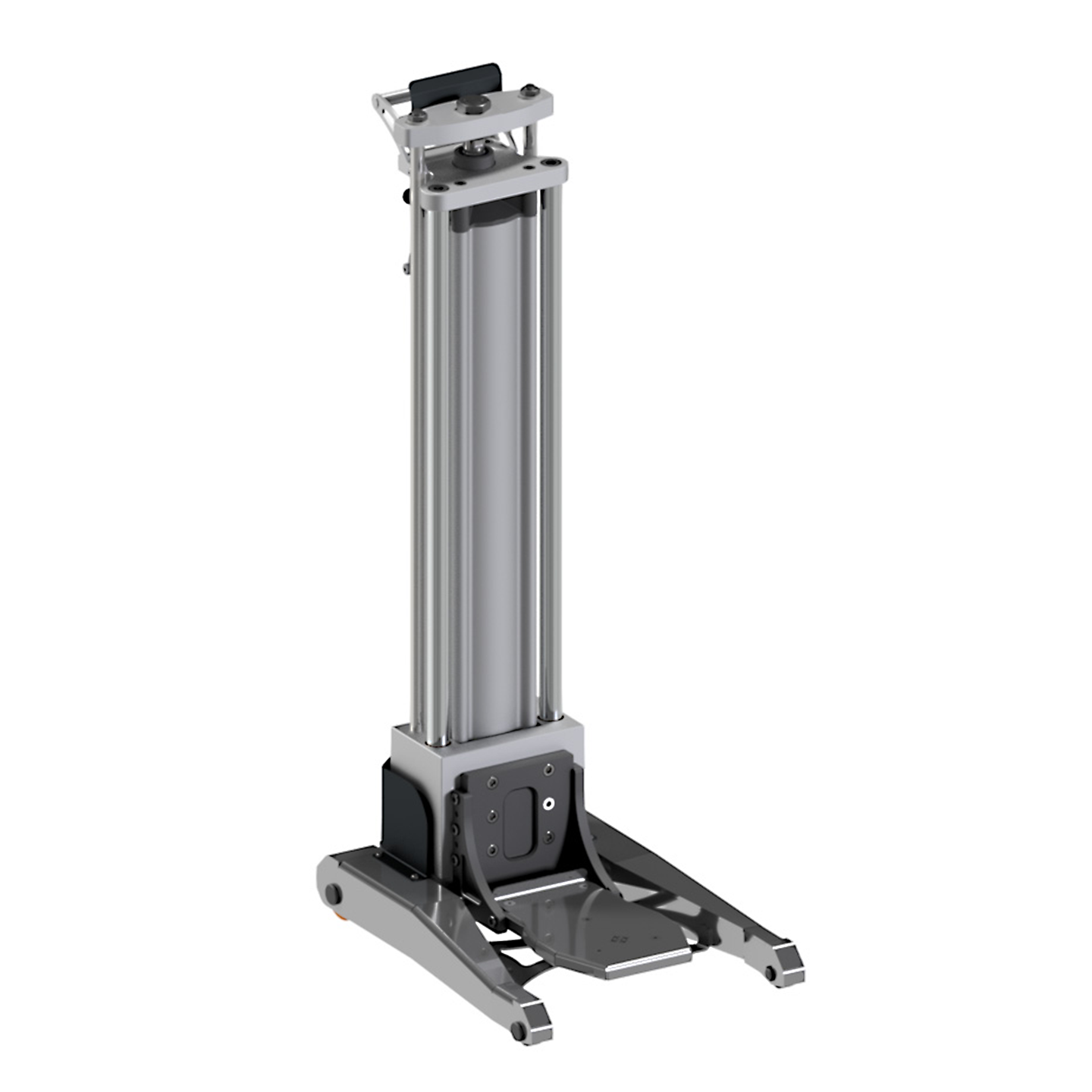

The Paoli Air Jack Trolley is a professional pneumatic lifting system designed for fast, safe, and reliable use in motorsport pit stops. Built for maximum performance, it features a high-strength vertical air cylinder and a stable rolling base.



The trolley is available in three shovel configurations—bar, paddle, and fork—to accommodate different vehicle types, from lightweight race cars to heavier GT or prototype models. With a maximum lifting capacity of 600 kg and rapid response at 10 bar working pressure, this trolley is trusted by top-tier racing teams for efficient vehicle handling during time-critical operations

SPECIFICATION

Pneumatic air jack
Maximum working pressure 10 bar
Maximum capacity 600 kg



Shovel configurations:


Bar Shovels – for lighter race cars
Lift height: 900 mm



Paddle Shovels – for wider contact under lighter vehicles
Lift height: 780 mm



Fork Shovels – for heavier race cars and defined lifting points
Lift height: 700 mm



Integrated wheels for quick positioning
Pit stop vehicle lifting – GT, touring, and prototype cars

OVERSIZED SHIPPING

For this product, an individual shipping cost will be proposed due to oversized dimensions. After completing your order, select "Request for Quote" as the payment method. You will make the payment upon receiving an invoice with the proposed shipping cost.
