PAOLI

PAOLI COMPRESSOR DPH

SKU 000B210002

Price excl. VAT / TAX
Please sign in to see pricing
Excl. tax:  €4066.12
TYPE:

Product specifications

DESCRIPTIONS

High-pressure compressors designed for filling air bottles used in motorsport operations.
All models are CNC manufactured and assembled in the EU, ensuring high reliability and long-term performance.



Key features:

  • Maximum operating pressure: 300–330 bar

  • Outlet hoses: supplied with two high-pressure hoses (220 and 300 bar)

  • Automatic stop at final pressure

  • Automatic condensate drain with timer (standard)

  • Pressure gauge, non-return valve, and hour counter included

  • Quiet operation and high performance

  • Optional: trolley frame and automatic pressure regulator (for DPH220 and DPH460)

SPECIFICATIONS

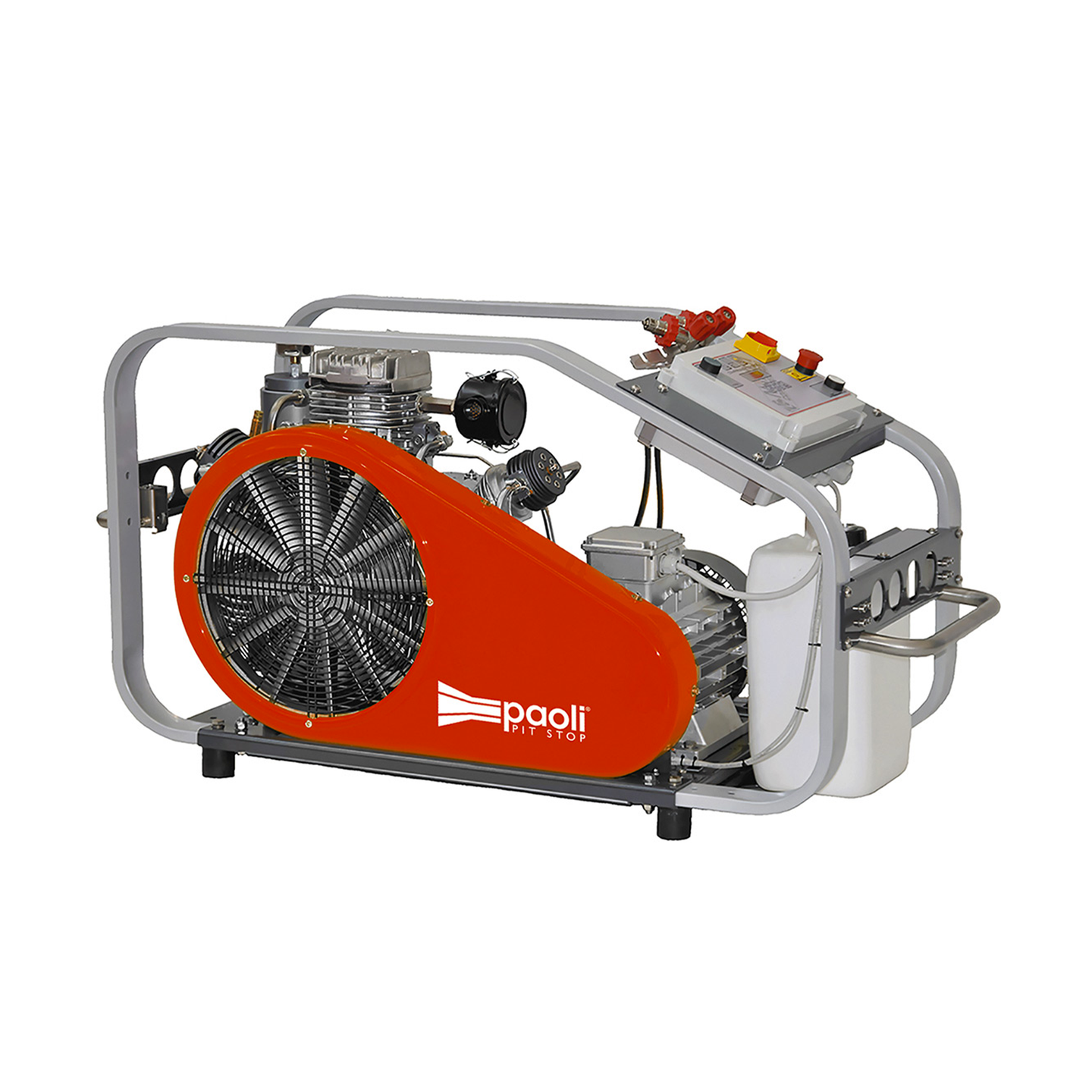

000B210101 / DPH380

  • Engine: three-phase electric motor 5.5 kW (7.5 HP)

  • Capacity: 300 l/min (10.6 CFM / 18 m³/h)

  • Operating pressure: 300 bar / 4350 PSI

  • Filling time (1 bottle from 0–200 bar): 6 min 44 s

  • Noise level: 78 dB

  • Dimensions: 118 × 54 × 69 cm

  • Dry weight: 137 kg

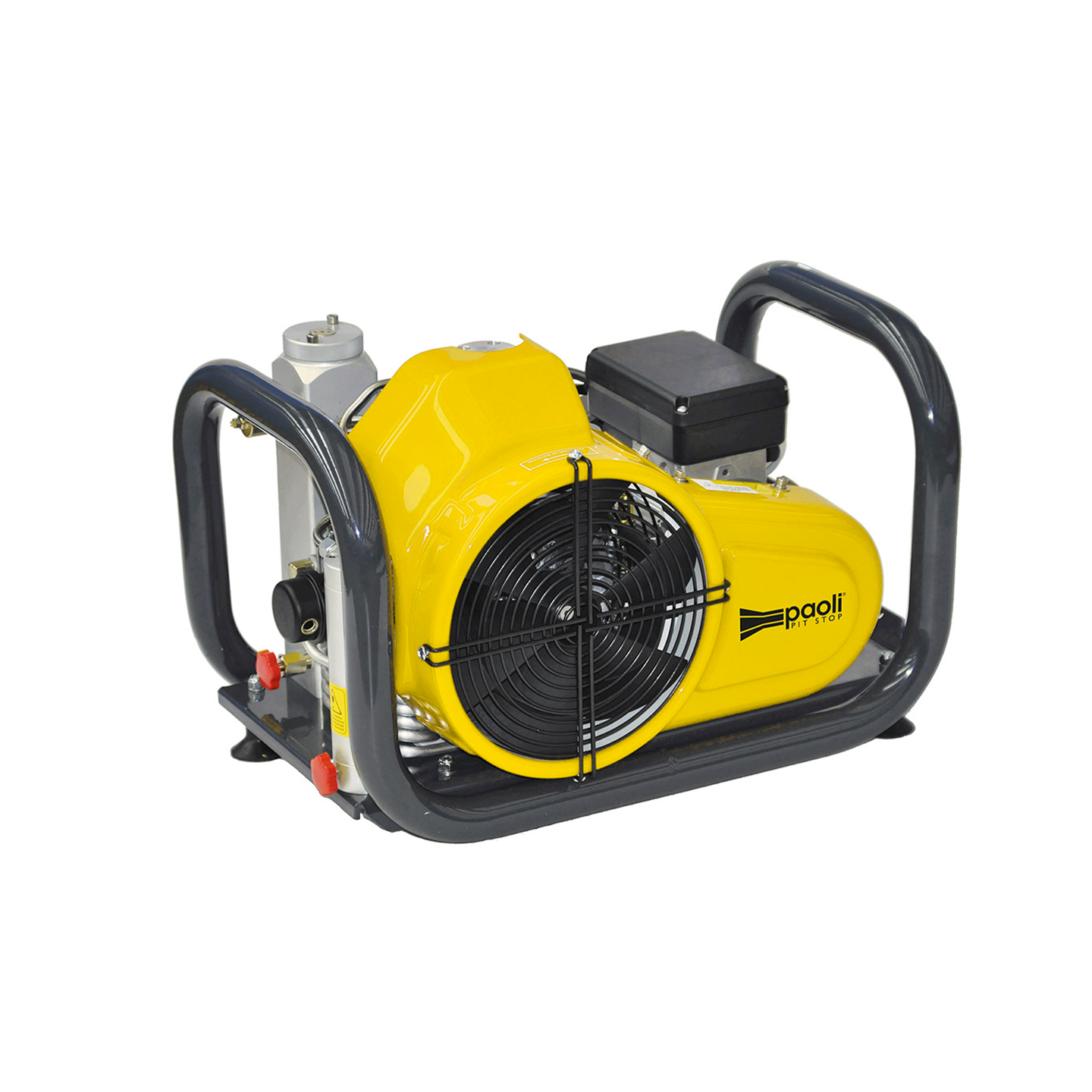

000B210002 / DPH220

  • Engine: single-phase electric motor 2.2 kW (3.0 HP)

  • Capacity: 100 l/min (3.5 CFM / 6 m³/h)

  • Operating pressure: 300 bar / 4350 PSI

  • Filling time (1 bottle from 0–200 bar): 20 min

  • Noise level: 79 dB

  • Dimensions: 58 × 41 × 41 cm

  • Dry weight: 42.5 kg

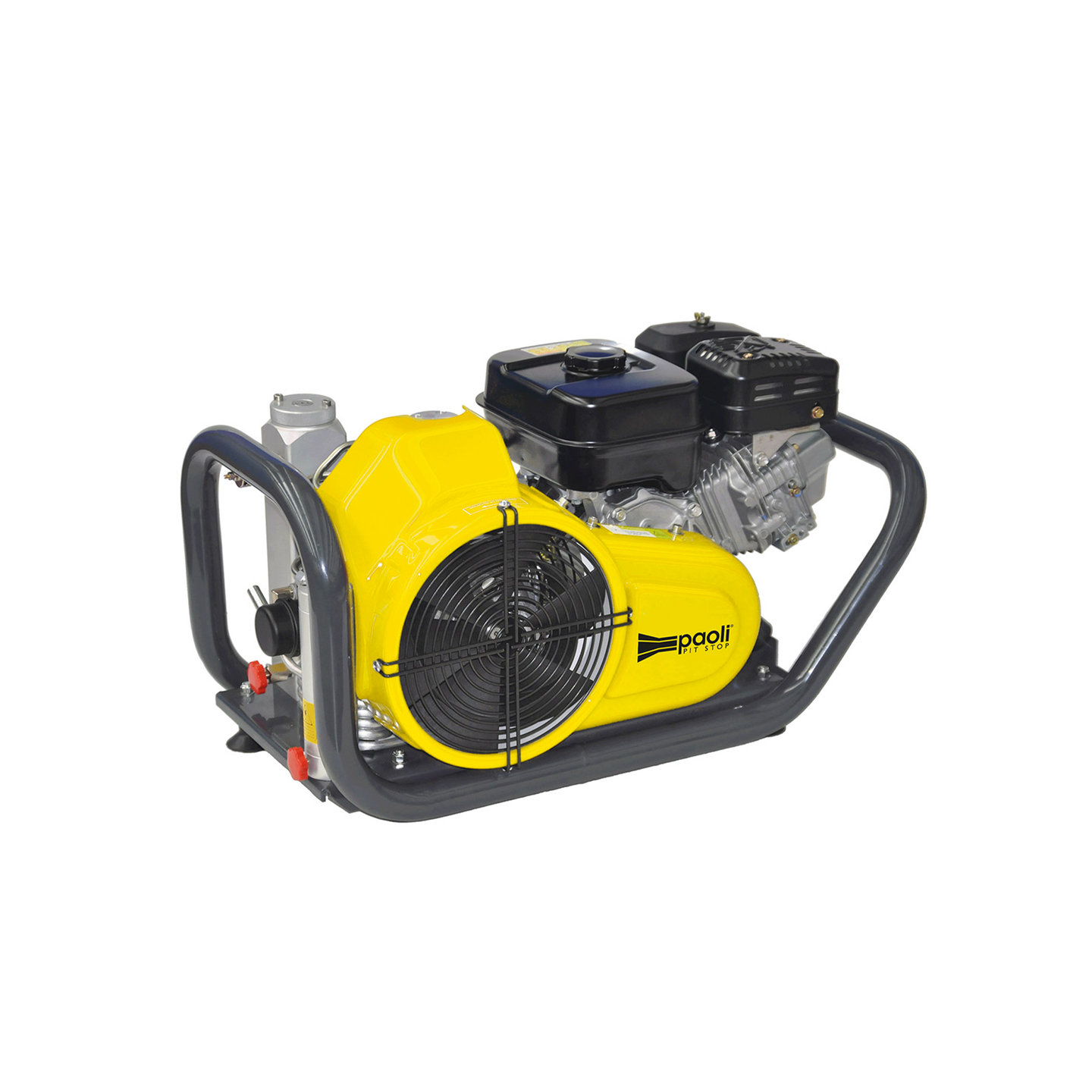

000B210103 / DPH460

  • Engine: Subaru Robin petrol engine 4.2 kW (6.0 HP)

  • Capacity: 100 l/min (3.5 CFM / 6 m³/h)

  • Operating pressure: 300 bar / 4350 PSI

  • Filling time (1 bottle from 0–200 bar): 20 min

  • Noise level: 84 dB

  • Dimensions: 75.5 × 39 × 41 cm

  • Dry weight: 42.0 kg

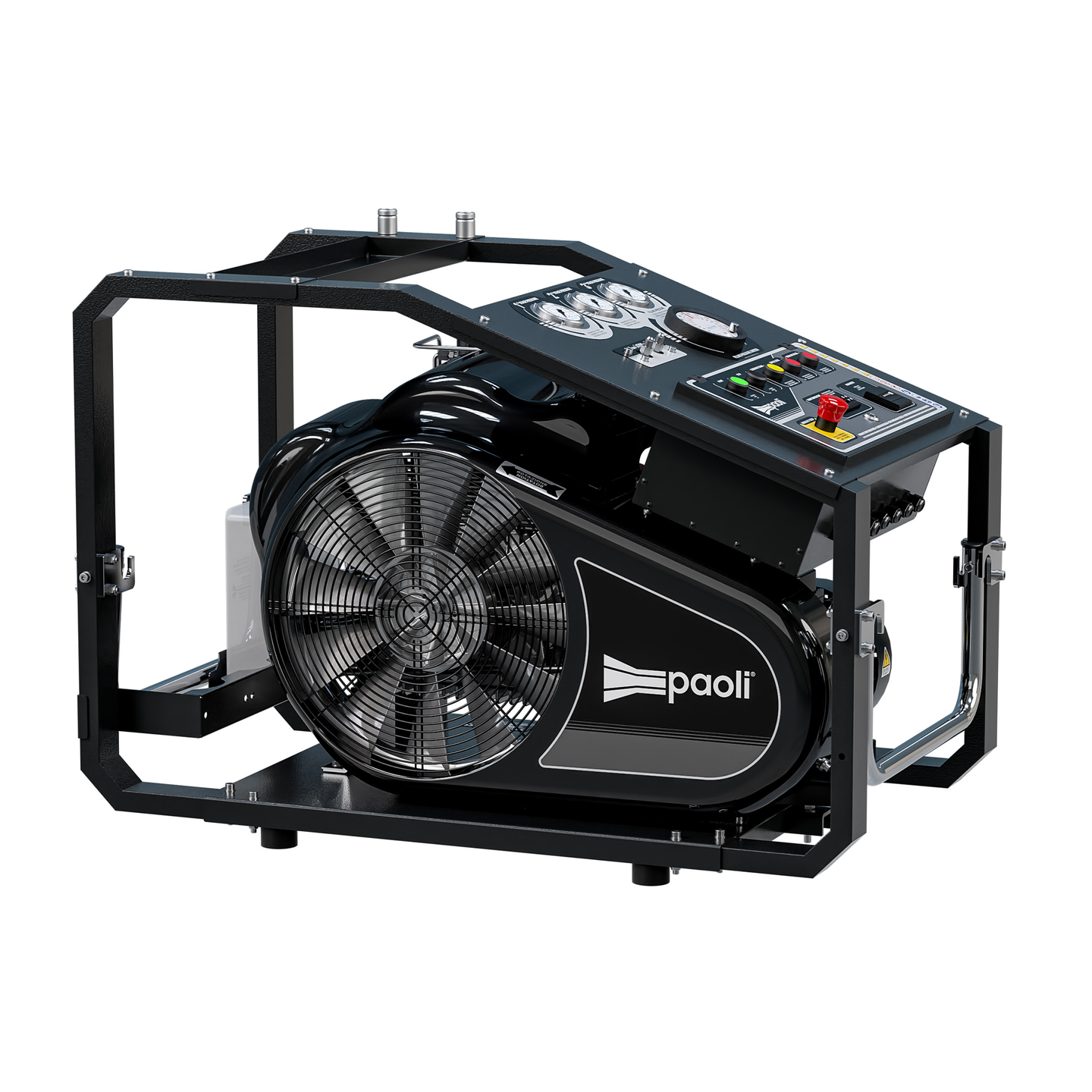

000B210281 / DPH380 PLUS

  • Engine: three-phase electric motor 5.5 kW (7.5 HP)

  • Capacity: 315 l/min (11.1 CFM / 18 m³/h)

  • Operating pressure: 232–300–330 bar

  • Filling time (1 bottle from 0–200 bar): 6 min 20 s

  • Noise level: 72 dB

  • Dimensions: 112 × 63 × 77 cm

  • Dry weight: 152 kg

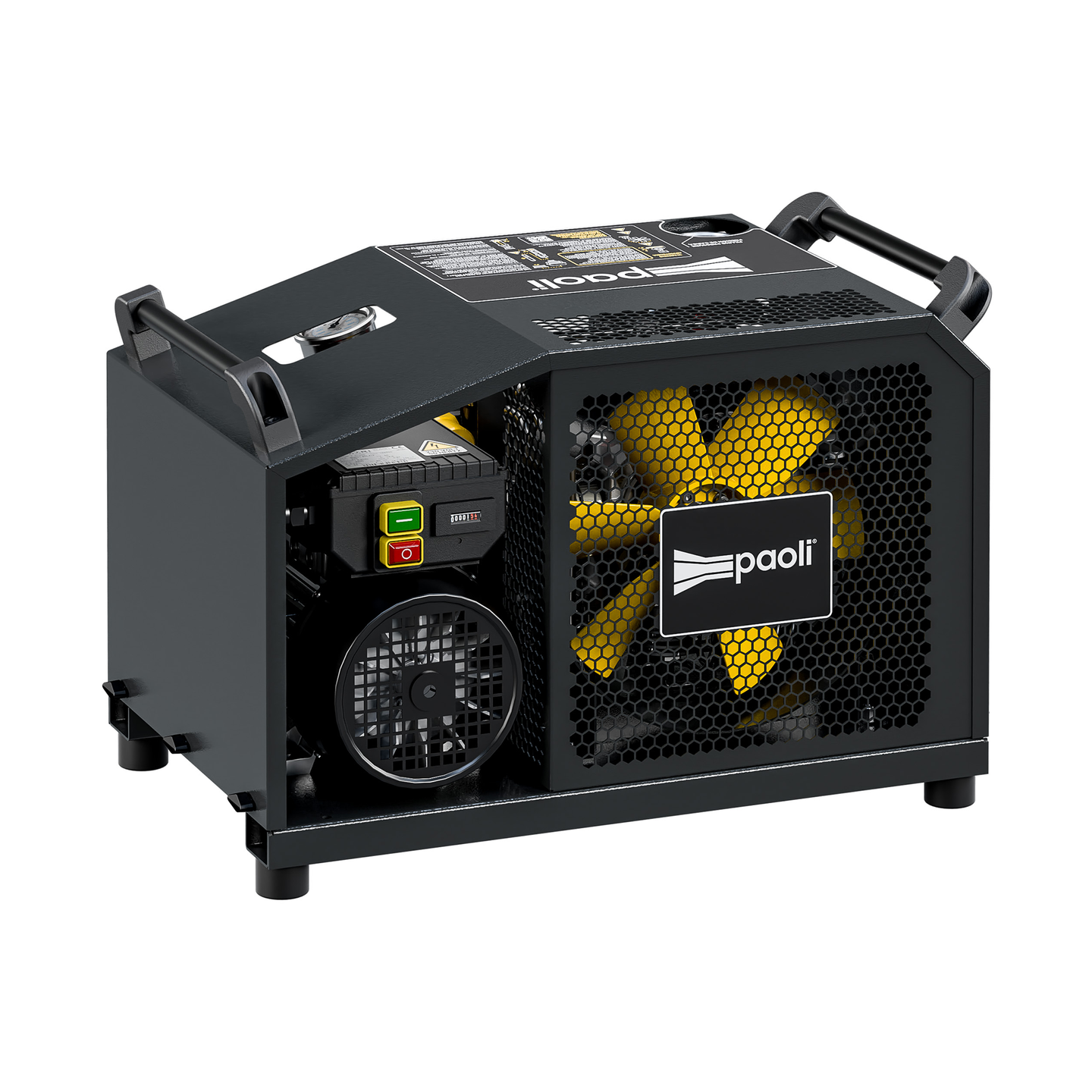

000B210280 / DPH220 PLUS

  • Engine: single-phase electric motor 2.2 kW (3.0 HP)

  • Capacity: 100 l/min (3.5 CFM / 6 m³/h)

  • Operating pressure: 232–300–330 bar

  • Filling time (1 bottle from 0–200 bar): 20 min

  • Noise level: 72 dB

  • Dimensions: 59.2 × 38 × 42.7 cm

  • Dry weight: 57.1 kg

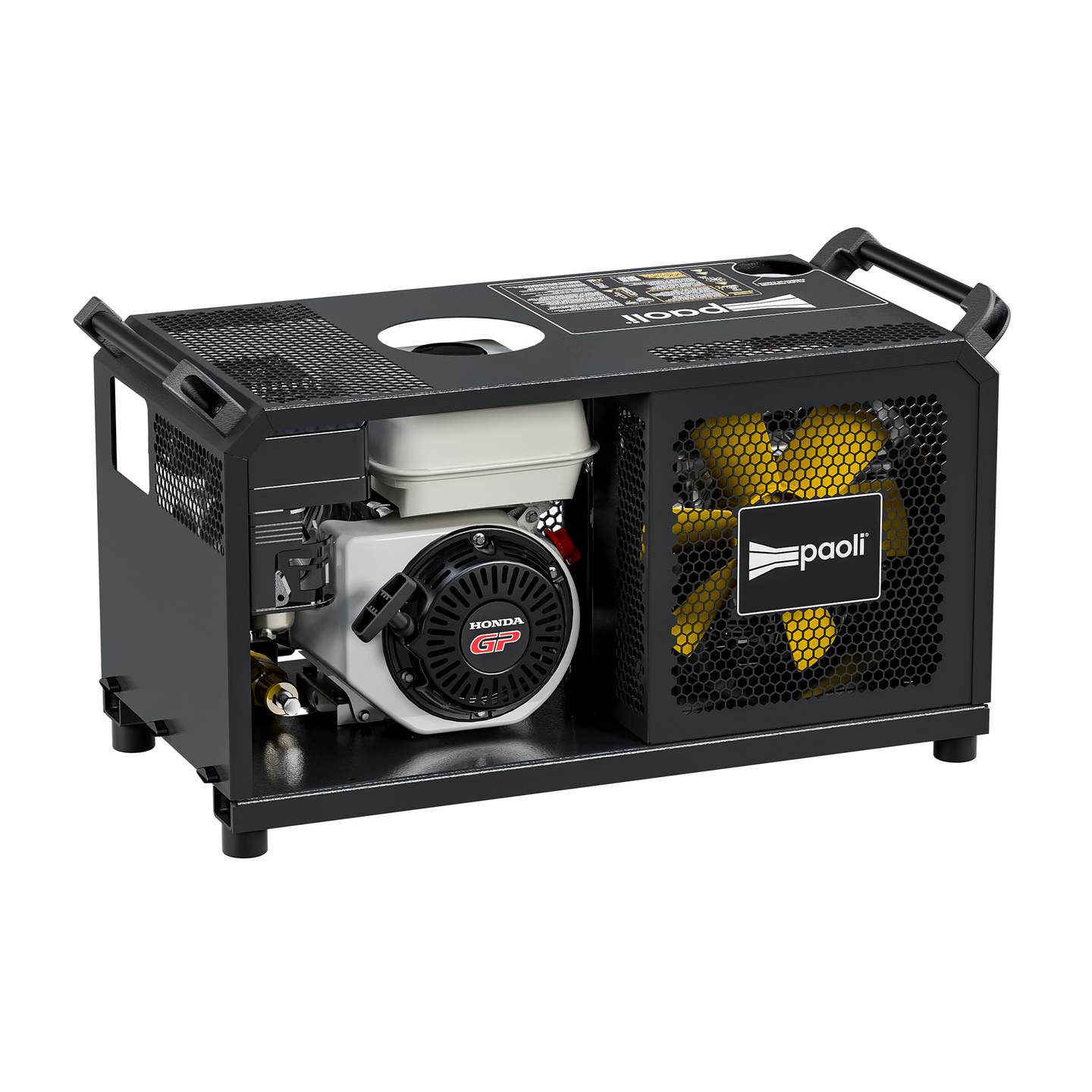

000B210282 / DPH460 PLUS

  • Engine: Honda HP200 petrol engine 4.3 kW (7.7 HP)

  • Capacity: 100 l/min (3.5 CFM / 6 m³/h)

  • Operating pressure: 232–300–330 bar

  • Filling time (1 bottle from 0–200 bar): 20 min

  • Noise level: 80.5 dB

  • Dimensions: 79.8 × 37 × 43.5 cm

  • Dry weight: 53 kg

OPTIONAL ACCESSORIES

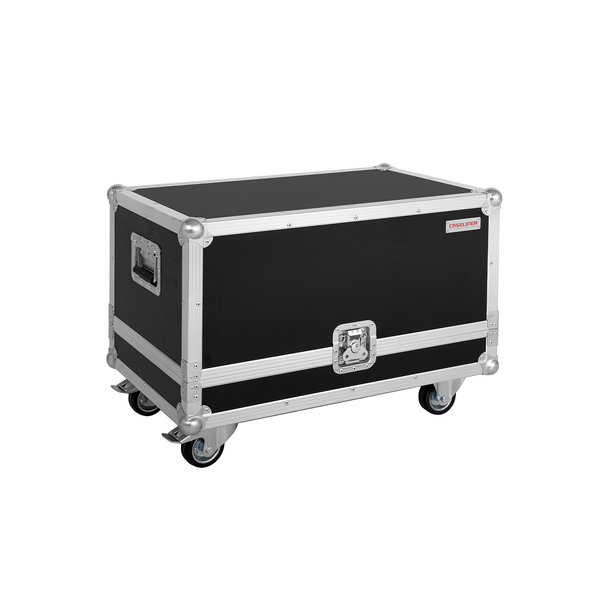

  • 0050911001 / DPH220 PAOLI FLIGHT CASE
  • 0050911002 / DPH460 PAOLI FLIGHT CASE
  • 0050911003 / DPH380 PAOLI FLIGHT CASE
OVERSIZED SHIPPING

For this product, an individual shipping cost will be proposed due to oversized dimensions. After completing your order, select "Request for Quote" as the payment method. You will make the payment upon receiving an invoice with the proposed shipping cost.

DOWNLOADS
