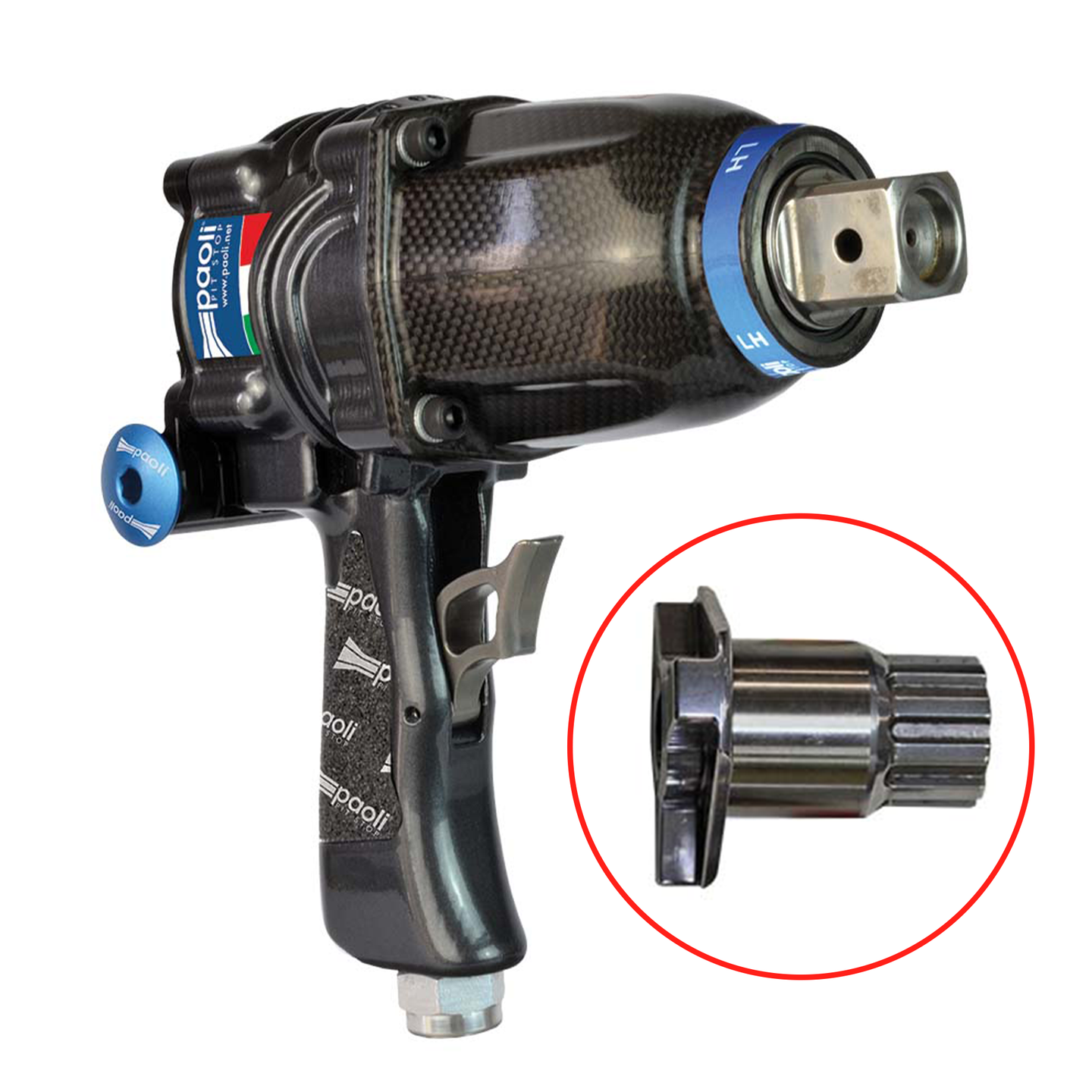

DP 6000 SPLINE 90° HANDLE

The DP6000 90° Angled Handle is a high-performance wheel gun developed for use in top-level racing such as IndyCar and endurance series. Its body is made from either lightweight carbon or aerospace-grade aluminum, and features a new radial hammer mechanism (RHM) that ensures better performance and longer life. It also includes a redesigned ergonomic handle with optional double-stage trigger for enhanced control. The tool is optimized for torque, speed, and durability under high-pressure operations.

Free Speed for LH / RH versions is 14,700 rpm and for the UH version is 14,300 rpm.

Maximum Torque is 4,200 Nm (3,100 ft-lbs) for LH / RH and 4,000 Nm (2,950 ft-lbs) for UH.

Weight is 3.50 kg (7.7 lbs) for carbon version and 3.54 kg (7.8 lbs) for aluminum version.

Length is 198 mm (7.79”).

Square Drive is 1”.

Air Inlet is 3/8” BSP.

Supply Hose Inner Diameter is 13 mm (0.51”).

Maximum Operating Pressure is 25 bar (362 psi).

Gun Selector Plate is 3-port (2-port optional).

New Radial Hammer Mechanism ensures superior strength and longevity.

Optional MONOLITH INC PIN available to further increase durability.

Available in LH, RH, and UH versions – UH loosens both clockwise and anticlockwise nuts at equal speed.

Ergonomically designed 90° angled handle for improved usability.

Available in metallic carbon or aerospace aluminum cover variants.

Ready for SPLINE drive and 1000-cycle tested rotor system.
