DP 2000 SE

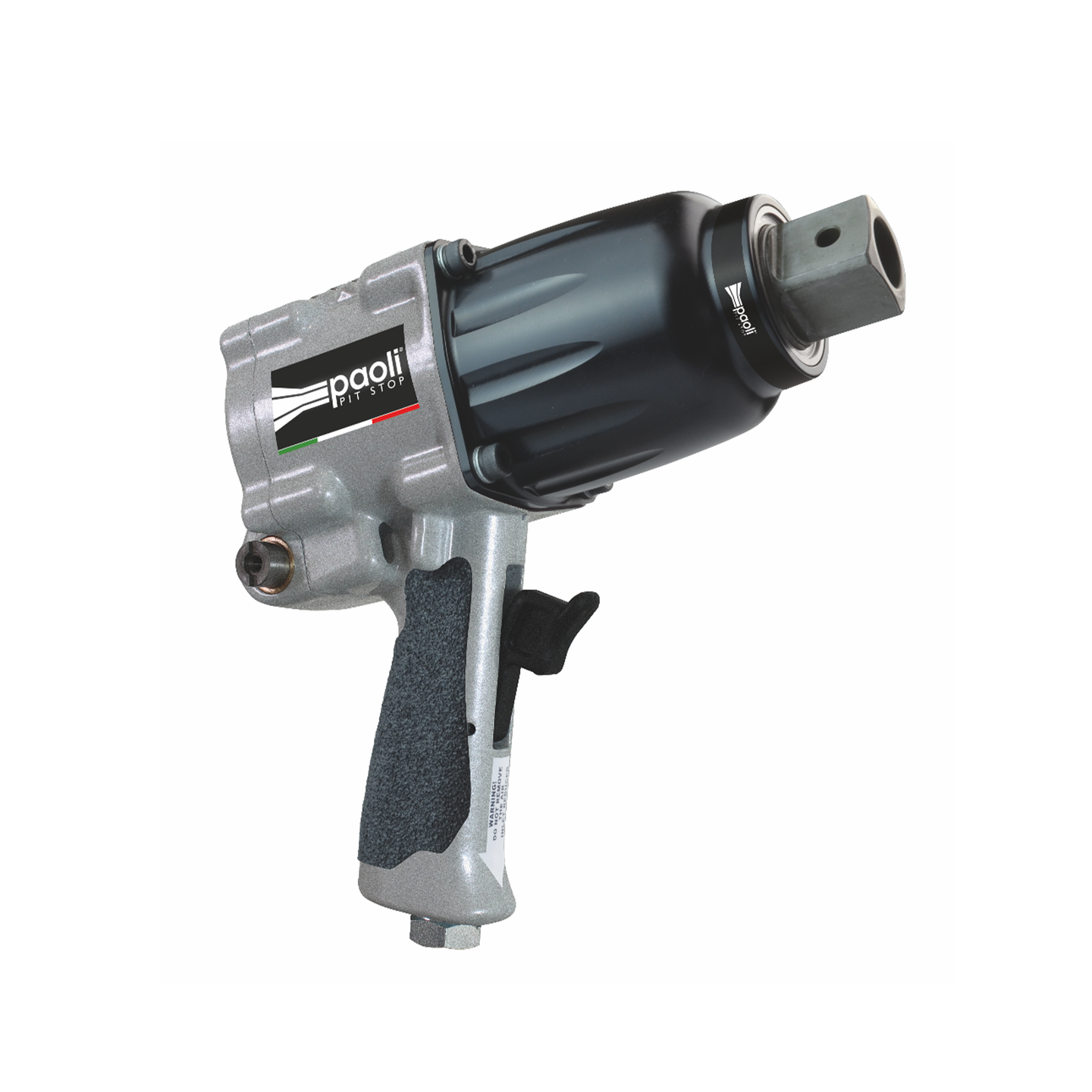

The DP2000 SE is a high-performance and compact 1” pneumatic impact wrench designed for motorsport and demanding garage environments. It is widely used in top-level racing series such as IMSA and is known for its reliability and strong torque output.

The wrench features a lightweight magnesium body with a 7075 aeronautical aluminum front cover (optional carbon version available). It is offered in LH (left-hand), RH (right-hand), and UH (unhanded) versions for specific or dual-direction nut release.

Equipped with 6 carbon vanes for enhanced performance, a 2-port quick switch for rapid direction changes, and weighing only 3.83–3.90 kg, the DP2000 SE reaches up to 9500 rpm (LH/RH) and provides a maximum torque of up to 2500 Nm.

Standard air supply includes a 3/8” BSP air inlet, recommended 13 mm hose inner diameter, and maximum operating pressure of 20 bar. The DP2000 SE is compatible with spline drive shafts and offers modern performance in Paoli’s proven racing-grade design.

LH / RH Versions: 9,500 rpm

UH Version: 9,000 rpm

LH / RH: 2,500 Nm

UH: 2,400 Nm

Weight: 3.83–3.90 kg

Length: 193 mm (7.59”)

Square Drive: 1” or spline drive

Optimized for Endurance Racing

Special UH (Unhanded) version loosens both clockwise and anticlockwise nuts at the same speed

Fast LH and RH versions for direction-specific efficiency

Durability & Design

Equipped with 6 new carbon vanes

Aeronautical 7075 aluminum front cover or optional carbon version

Magnesium alloy body for reduced weight

Max Operating Pressure: 20 bar / 290 psi

Air Supply Requirements

Air Inlet: 3/8” BSP

Supply Hose Inner Diameter: 13 mm (0.51”)

Recommended couplings: minimum bore 7.6 mm (19/64”)

Use with male 3/8” BSP fittings

Gun Selector Plate: 2-port for rapid direction switching
