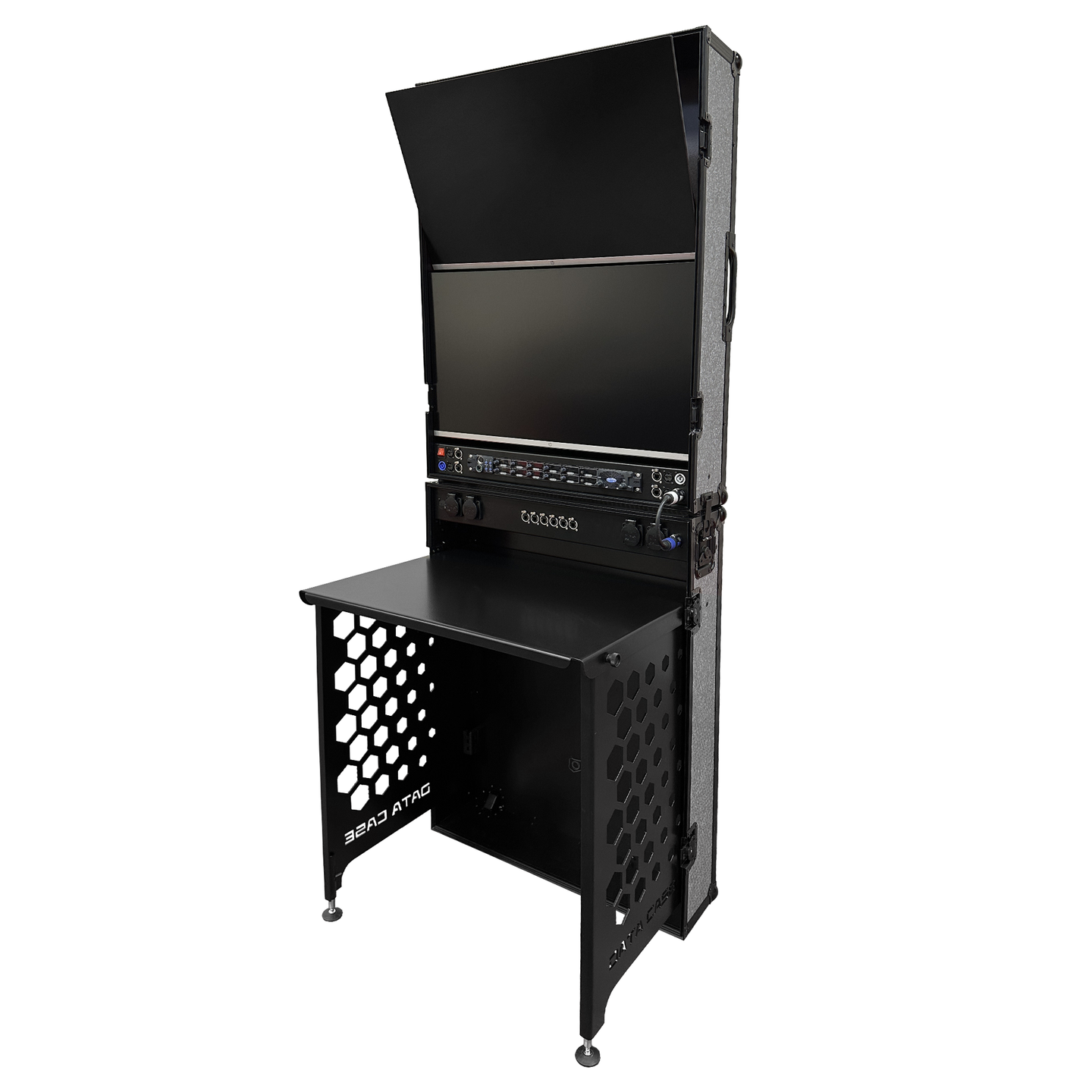

DATA CASE ONE

In the DATA CASE line, we now offer a highly compact solution called DATA CASE ONE, ideal for single-user work. This portable system allows the user to utilize two large 32” monitors FULL HD - 110/230V or ULTRA HD 110V/230V providing an extensive workspace. It stands out for its compactness during transport and modular design, allowing easy expansion with additional cases side-by-side or in sequence according to the user’s needs. This system supports the use of radio and network splitters, ensuring connectivity and flexibility in various configurations. It is the perfect solution for professionals who require a highly functional, portable workspace tailored to specific requirements.

TABLE MODUL
Base floor module with foldable table. Quick and easy assembly – continue according to the manual. At the top, above the table, there is a POWER BOX for electrical distribution to the MONITOR MODULE, including two power sockets tailored to national specifications upon request. Additionally, there is pre-installed RJ-45 network cabling for LAN connectivity. It is also possible to integrate a DVB-T2 tuner and a network router inside the module.

MONITORS MODUL
The PC monitor module is equipped with two standard 32” FHD monitors (1920 × 1080 pixels) or UHD monitors (3840 × 2160 pixels) or custom-specified monitors can be supplied upon request. The panel includes HDMI inputs for connection to your PC or laptop. Additionally, the module features RJ-45 network connectivity and a 1U cutout prepared for a radio splitter (not included in the standard equipment).

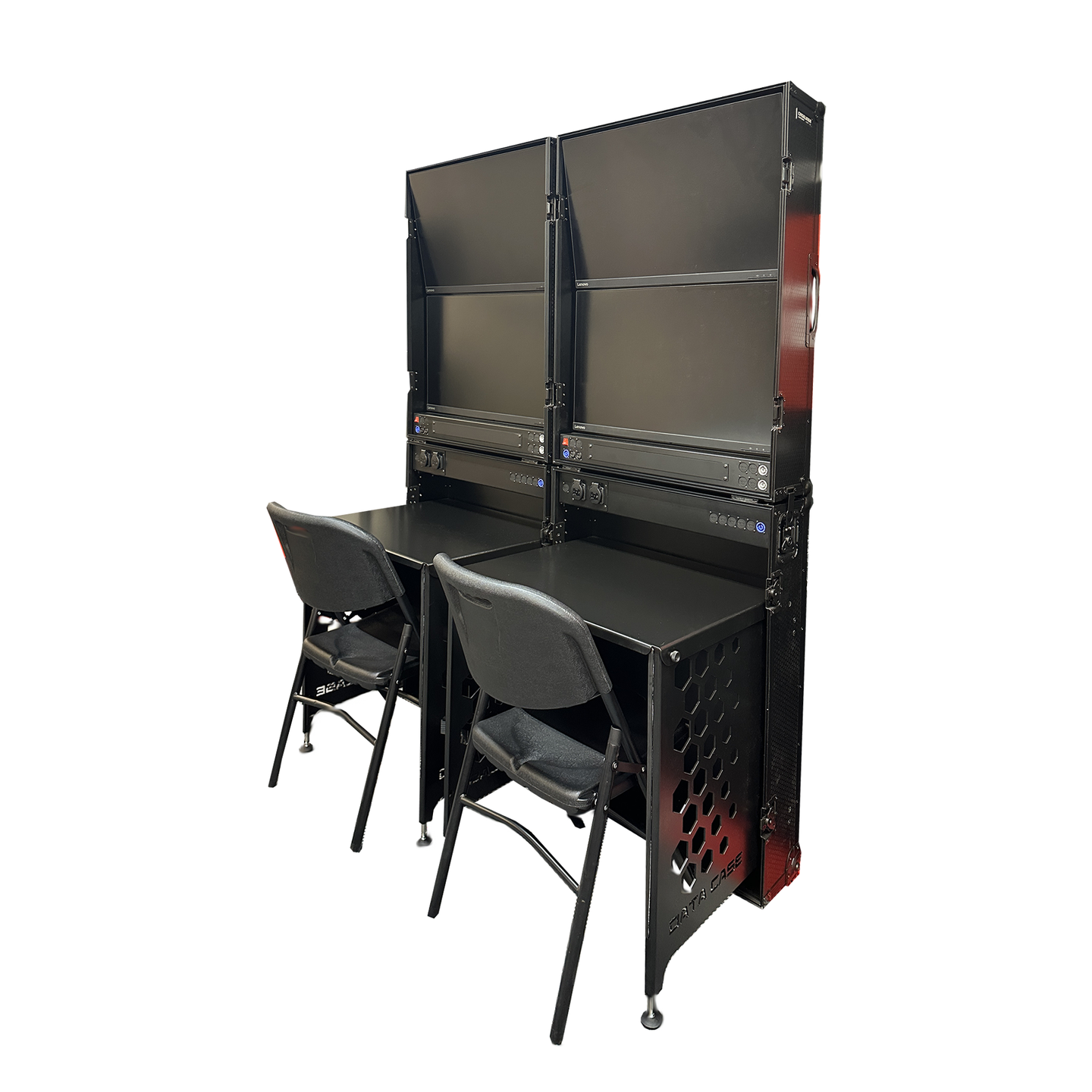

Images are for illustration purposes only. Certain accessories such as chairs, covers, and radio splitters are not included in the standard price.

1. The assembly of the DATA CASE should always be carried out by a trained person.
2. We recommend assembling the data case with two people.
3. The FLIGHT CASE is equipped with only two wheels for easier ground transport.
4. Please handle with care when rolling — there is a risk of tipping towards the person guiding it if not handled
attentively.

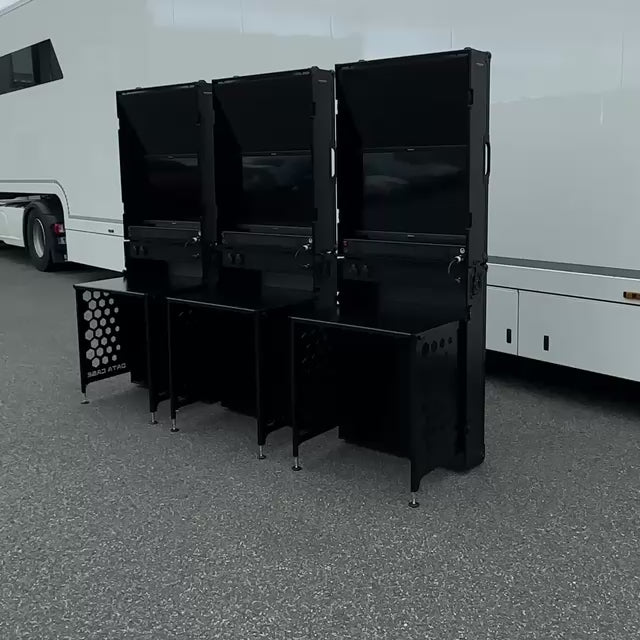

• Compact and small transport dimensions
• Simple, foldable designer table
• Minimal space requirements for setup
• Two large 32” monitors FULL HD or ULTRA HD
• Full HDMI connectivity

• Network hub ( 1×5, optional accessories )
• 1U slot for radio splitter
• Elegant design
• Standart color is black + black hardware

Dimension in transport mode:

Width: 775 mm / 30.5 in
Depth: 435 mm / 17.1 in
Height: 1010 mm / 39.8 in
Weight: 57 kg / 125.7 lbs
Volume: 0.3 cubic meters / 10.6 cubic feet (ft³)

Dimension in operating mode:

Width: 775 mm / 30.5 in
Depth: 720 mm / 28.3 in
Height: 2020 mm / 79.5 in

Images are for illustration purposes only. Certain accessories such as chairs, covers, and radio splitters are not included in the standard price.

• 0120111013 / ETHERNET NETWORK

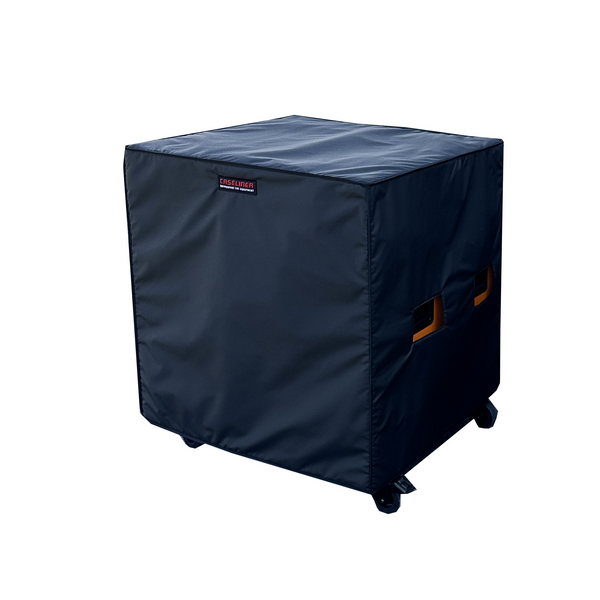

• 0010522220 / PROTECTIVE COVER D1

For this product, an individual shipping cost will be proposed due to oversized dimensions. After completing your order, select “CALCULATED AFTER QUOTE”. You will make the payment upon receiving an invoice with the proposed shipping cost.
