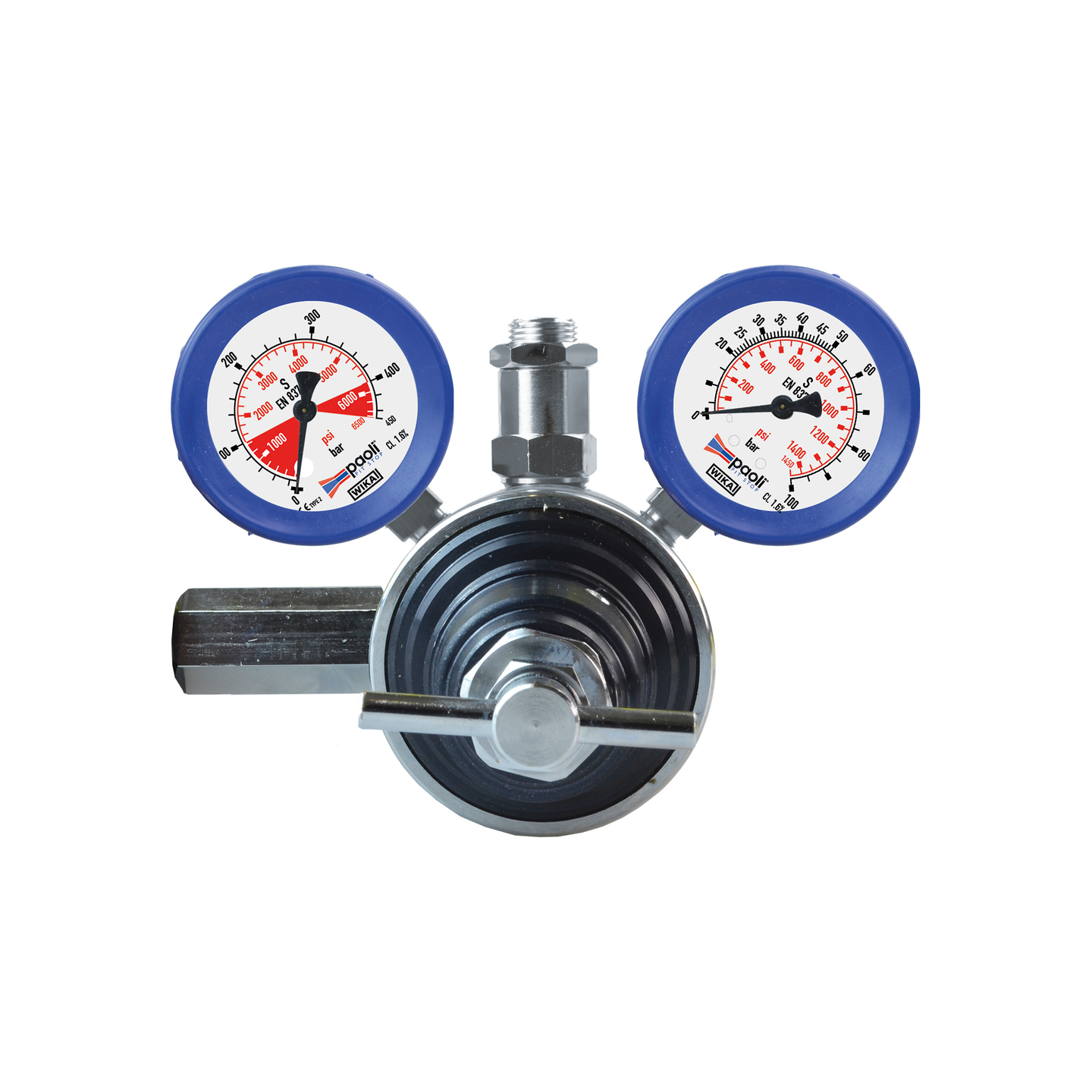

AIR REGULATOR F1

Paoli regulators are designed to guarantee a very high and stable airflow to all Paoli guns. They minimize pressure drop from static to dynamic, ensuring reliability and performance. Most models are piston regulators for high pressure, while diaphragm regulators are available for lower pressures.

• All regulators are made entirely of brass
• Gauges available: standard, oil-filled for needle stability, dual-scale PSI/bar
• We recommend pairing with a high-pressure oiler and sending regulators for regular overhaul at an authorized service center

000B400001 / 220 bar
Inlet pressure: 220 bar
Max flow: 150 Nm³/h
Gauges: inlet 0–450 bar, outlet 0–60 bar

000B400034 / 220 bar (with psi gauges)
Inlet pressure: 220 bar
Max flow: 150 Nm³/h
Gauges: inlet 0–6500 PSI, outlet 0–870 PSI

000B400040 / 350 bar
Inlet pressure: 350 bar
Max flow: 200 Nm³/h
Gauges: inlet 0–450 bar, outlet 0–60 bar

Overpressure valve setting: 30 bar
Thread inlet: 1/4” BSP
Thread outlet: 3/8” BSP
Flow: medium
Mechanism: piston, balanced
