RMS-200

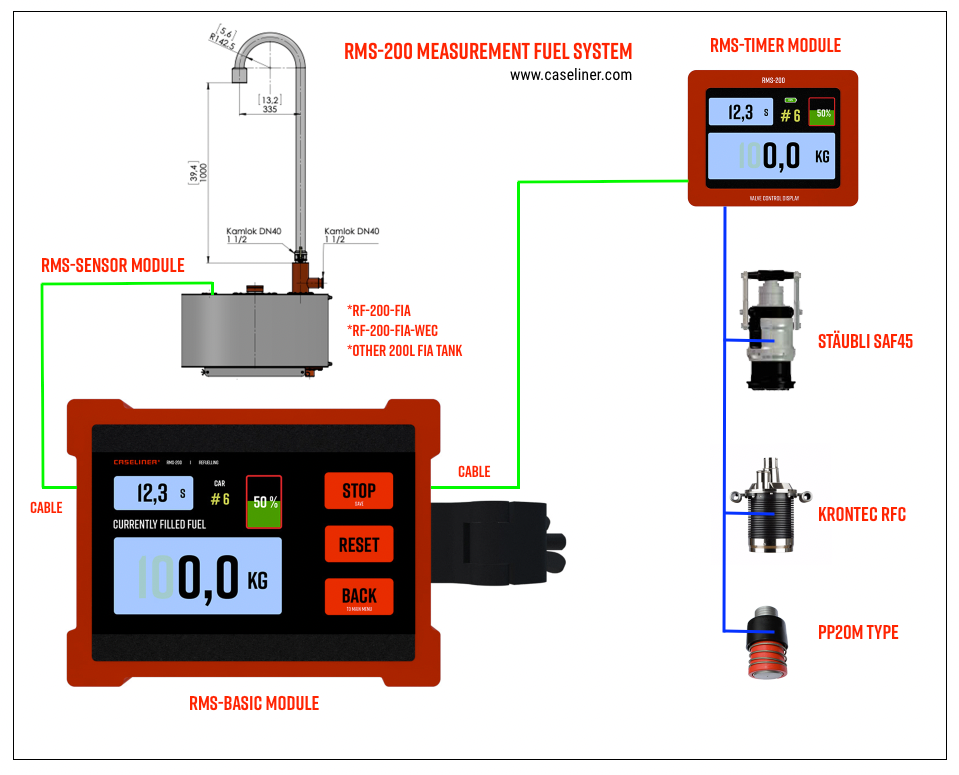

A system to continuously monitoring and recording the refuelling process of a race car and monitoring the fuel level in the RF200 refuelling tank. The system uses state-of-the-art ultrasonic measurement technology in compliance with current FIA regulations. Weights for fuel rigs are not required. The RMS-200 system is modular, with the possibility of using the main BASIC UNIT and an external VALVE UNIT for direct control of the refuelling phase by a second mechanic who has an overview of the amount of fuel filled and the time measured in the process. The RMS-200 can be used in any racing series. lt can be mounted directly on the RF200 brackets in two positions from the left or right. The VALVE UNIT will be placed on Staubli SAF, Krontec RFC or PP20M valves.

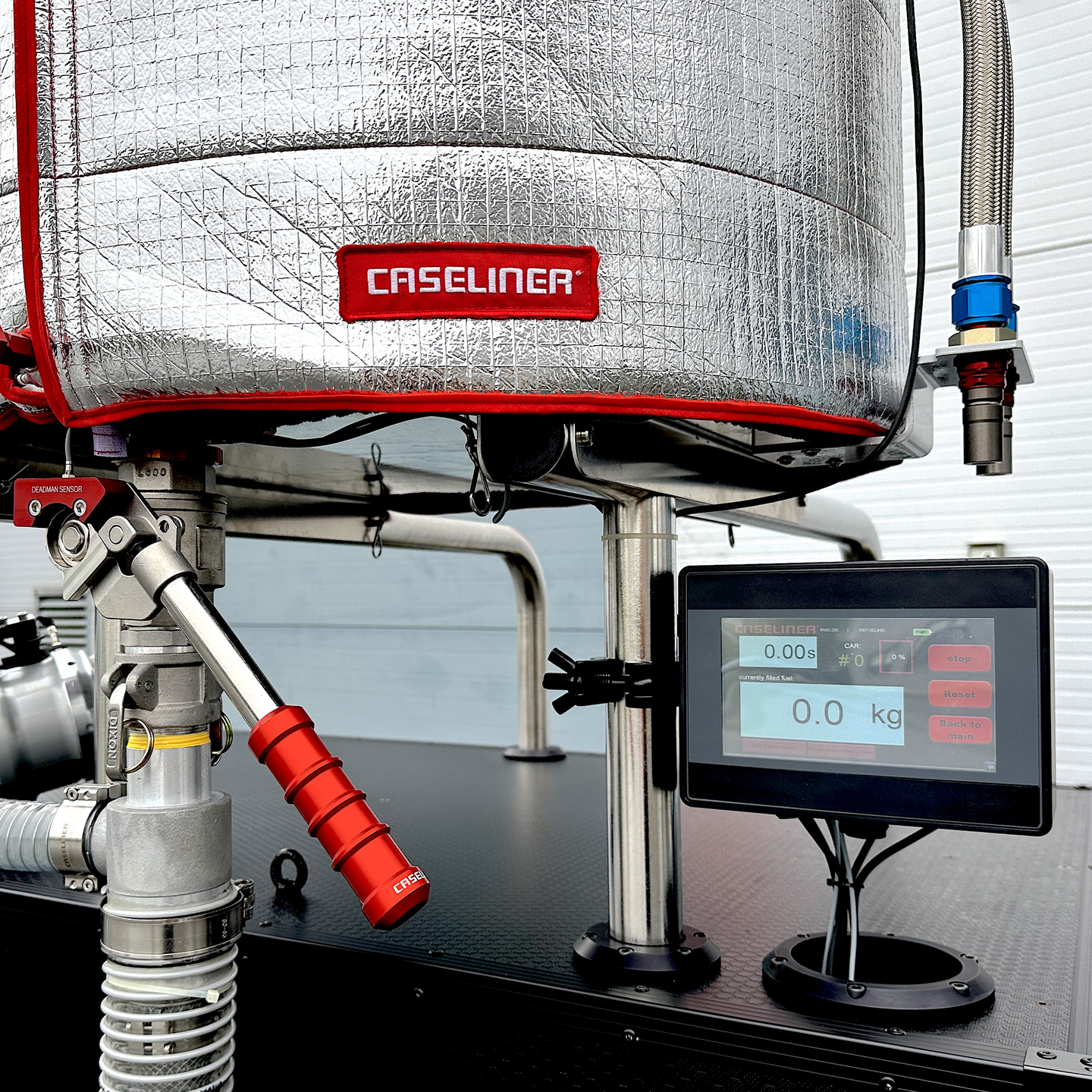

RMS-200-BU / BASIC UNIT - The main display, control module RMS-BU is located near the tank RF200 ( or other manufacturers)

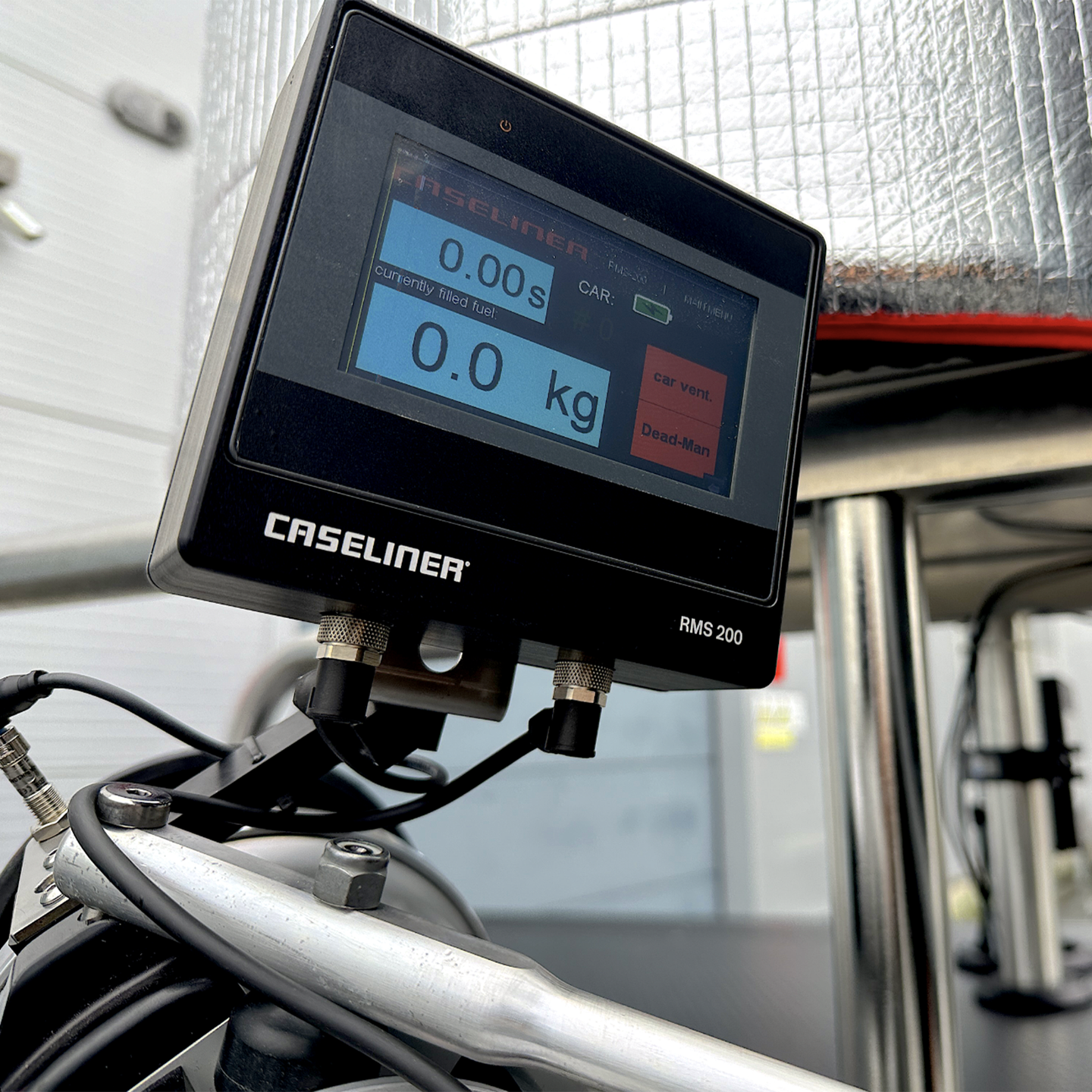

RMS-200-VU / VALVE UNIT - External control display RMS-VU / is located on the tank valve Staubli SAF, Krontec RFC or PP20M. The display can be purchased as an accessory. lt is connected to the BASIC UNIT module via a cable

DEADMAN SENZOR - The sensor RMS-200-DM-UPDATE starts and stops the measurement process for the BASIC UNIT. lncludes control LED. lt is part of this unit

FUEL RIG PROBE - Tank evaluation ultrasonic sensor RMS-FRP is located in the tank RF200 ( or other manufacturers)

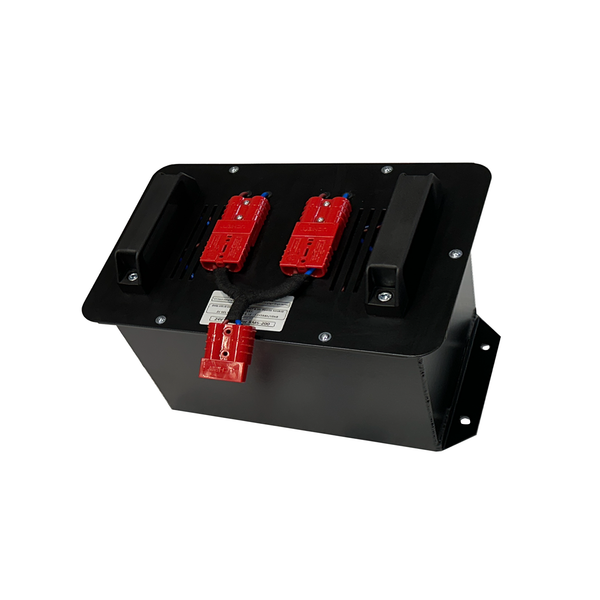

RMB-24 / BATTERY - The system uses two 12V series batteries = 24V. Standard car batteries then provide long term power for endurance racing while being easily recharged with a standard charger. The batteries can be suitably stored in a pit trolley.  Not included in the price, order here !

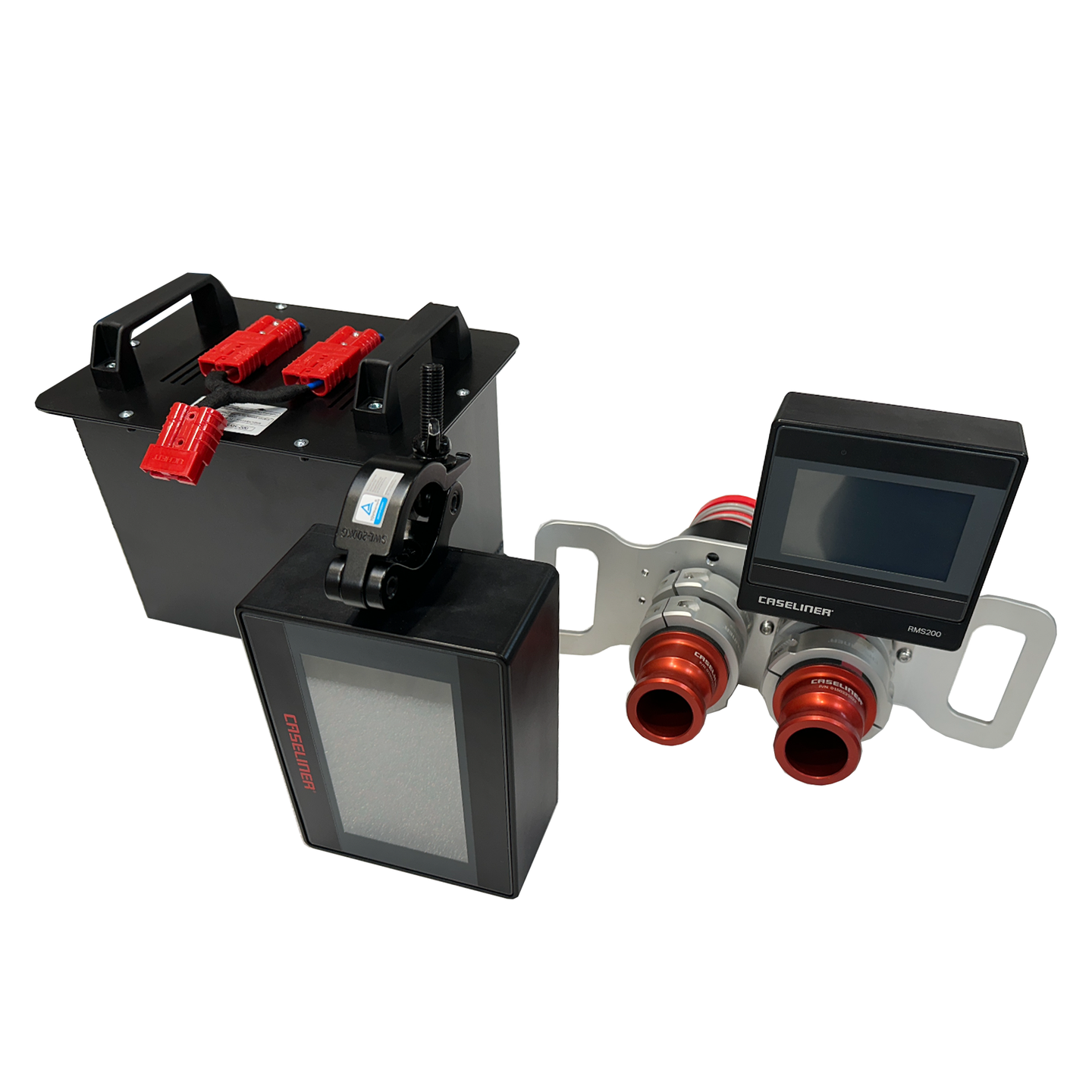

0152022001 / RMS-200-BU
Basic set with drum probe, DeadMan FIA + sensor, cables

0152022002 / RMS-200-VU
Valve unit

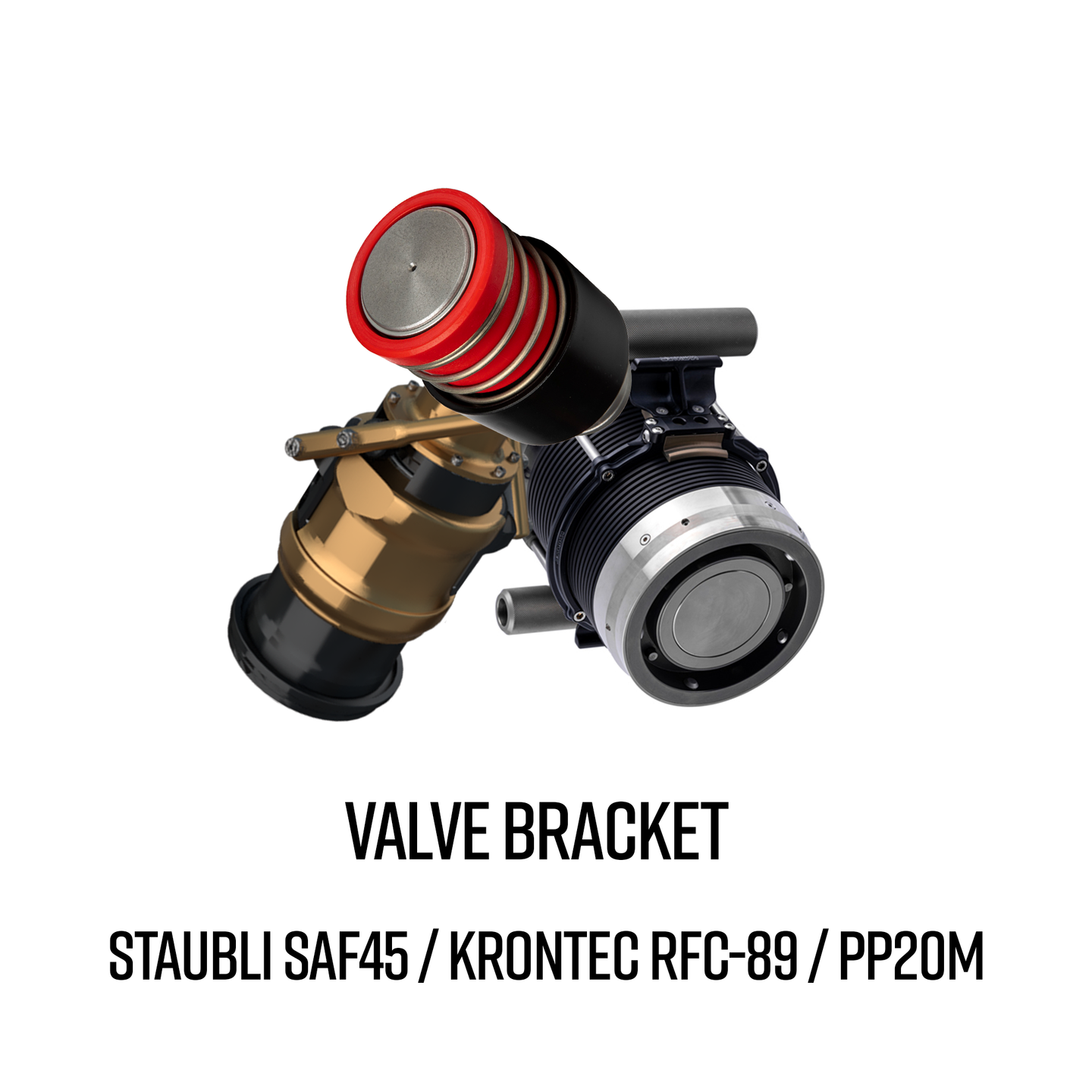

0152022021 / RMS-200-SH
Holder for STABLI SAF valve

0152022022 / RMS-200-KH
Holder for KRONTEC RFC valve

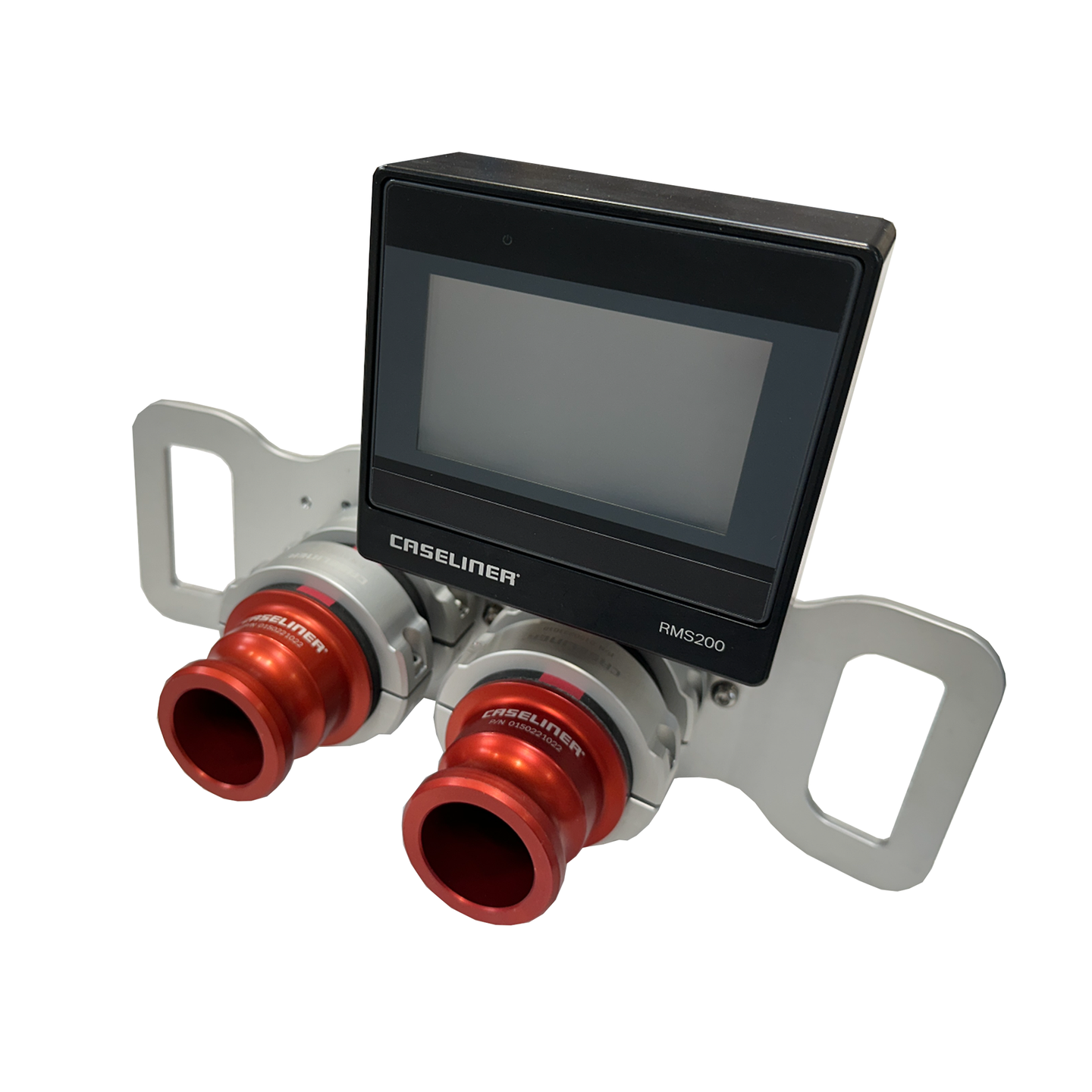

0152022023 / RMS-200-PP20HS
Holder with single PP20M valve

0152022024 / RMS-200-PP20HD
Holder with double PP20M valves

0152022025 / RMB-24 BATTERY
Double battery pack / Not included in the price, order here !

Robust modular design
High-accuracy measuring system
Adaptable with different valve configurations
Suitable for motorsport refuelling operations
